INA IR22X28X17-XL
Needle Roller Bearings
Inner ring IR..-XL, cylindrical
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

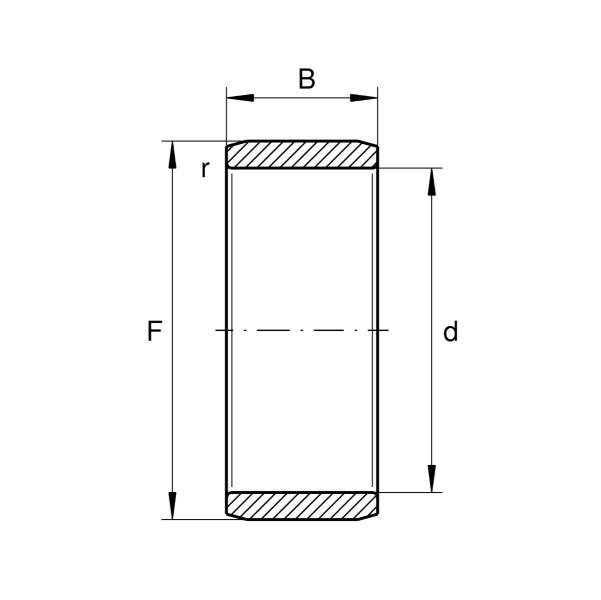

Main Dimensions & Performance Data
d
22 mm
Bore diameter
F
28 mm
Raceway diameter inner ring
B
17 mm
Width
0 mm
Raceway diameter upper tolerance
-0.012 mm
Raceway diameter lower tolerance
rmin
0.3 mm
Minimum chamfer dimension
≈m
29.8 g
Weight
