INA IR30X37X18-XL
Needle Roller Bearings
Inner ring IR..-XL, cylindrical
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

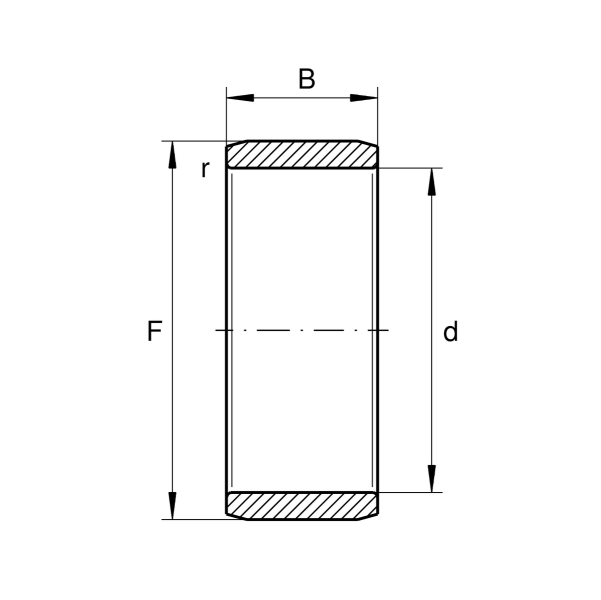

Main Dimensions & Performance Data
d
30 mm
Bore diameter
B
18 mm
Width
0.005 mm
Raceway diameter upper tolerance
-0.004 mm
Raceway diameter lower tolerance
rmin
0.6 mm
Minimum chamfer dimension
≈m
50.2 g
Weight
