INA IR50X60X28-XL
Needle Roller Bearings
Inner ring IR..-XL, cylindrical
(BRAND)：INA
(Availability)：In Stock

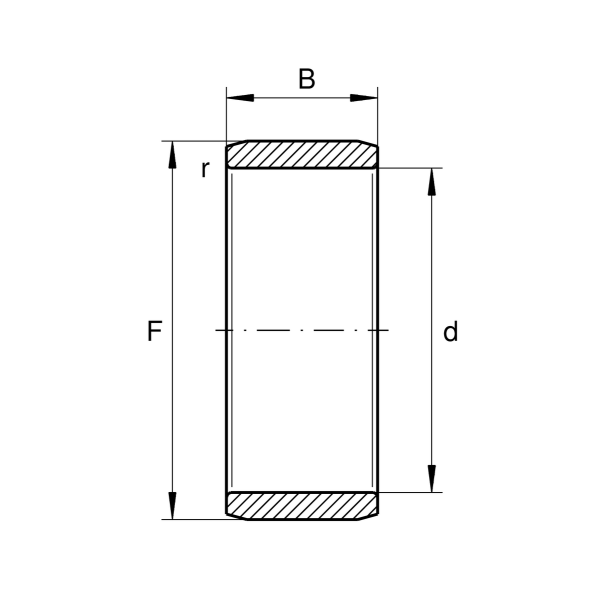

Main Dimensions & Performance Data
d
50 mm
Bore diameter
F
60 mm
Raceway diameter inner ring
B
28 mm
Width
0 mm
Raceway diameter upper tolerance
-0.011 mm
Raceway diameter lower tolerance
rmin
1.1 mm
Minimum chamfer dimension
≈m
184 g
Weight
