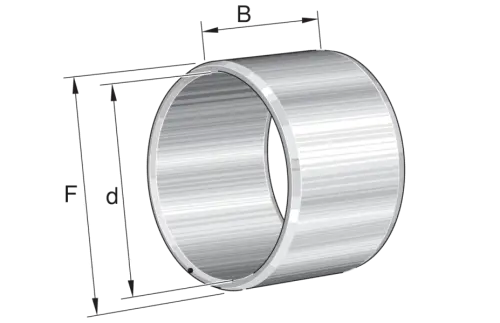

INA IR6X9X16-XL
Needle Roller Bearings
Inner ring IR..-XL, cylindrical
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

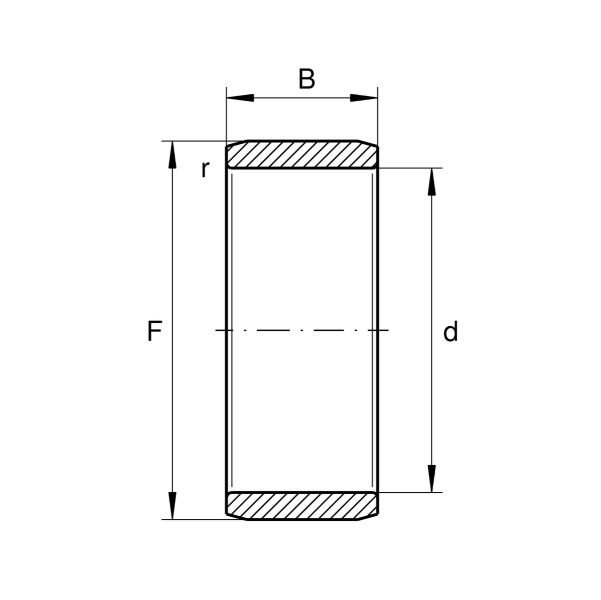

Main Dimensions & Performance Data
d
6 mm
Bore diameter
F
9 mm
Raceway diameter inner ring
B
16 mm
Width
-0.007 mm
Raceway diameter upper tolerance
-0.023 mm
Raceway diameter lower tolerance
rmin
0.3 mm
Minimum chamfer dimension
≈m
0.004 kg
Weight
