INA IR95X105X26-XL
Needle Roller Bearings
Inner ring IR..-XL, cylindrical
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

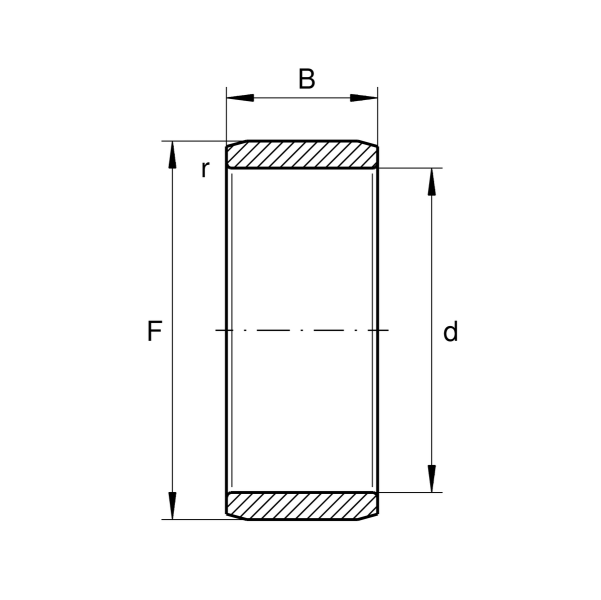

Main Dimensions & Performance Data
d
95 mm
Bore diameter
F
105 mm
Raceway diameter inner ring
B
26 mm
Width
-0.014 mm
Raceway diameter upper tolerance
-0.027 mm
Raceway diameter lower tolerance
rmin
1 mm
Minimum chamfer dimension
≈m
0.307 kg
Weight
