INA K100X108X30
Needle Roller Bearings
Needle roller cage assembly K, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

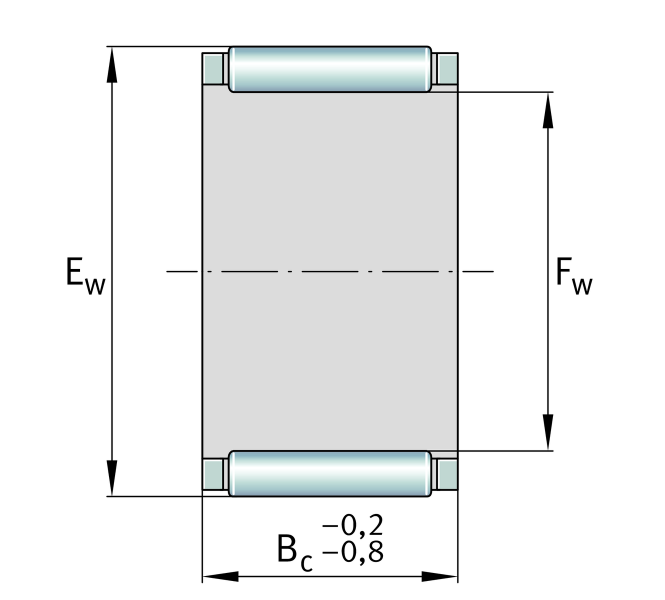

Main Dimensions & Performance Data
Fw
100 mm
Inner diameter of needle roller complement
Ew
108 mm
Outside diameter of needle roller complement
Bc
30 mm
Width
Cr
71,000 N
Basic dynamic load rating, radial
C0r
188,000 N
Basic static load rating, radial
Cur
26,500 N
Fatigue load limit, radial
CG
4,700 1/min
Limiting speed
nϑr
3,050 1/min
Reference speed
≈m
206 g
Weight
