INA K10X14X13-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

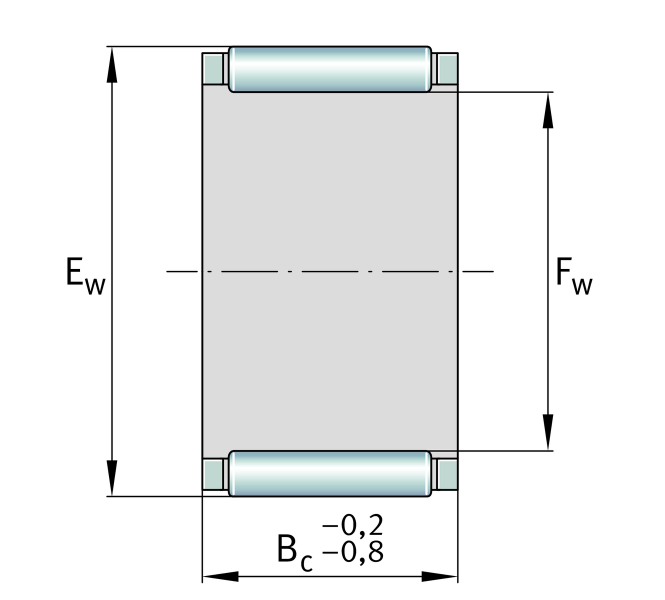

Main Dimensions & Performance Data
Fw
10 mm
Inner diameter of needle roller complement
Ew
14 mm
Outside diameter of needle roller complement
Bc
13 mm
Width
Cr
7,500 N
Basic dynamic load rating, radial
C0r
8,400 N
Basic static load rating, radial
Cur
1,040 N
Fatigue load limit, radial
CG
29,000 1/min
Limiting speed
nϑr
23,000 1/min
Reference speed
≈m
3.3 g
Weight
