INA K10X16X12-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

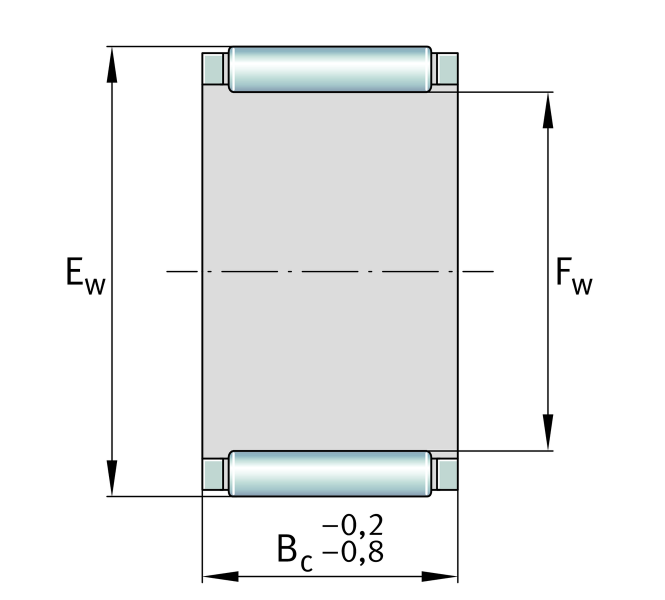

Main Dimensions & Performance Data
Fw
10 mm
Inner diameter of needle roller complement
Ew
16 mm
Outside diameter of needle roller complement
Bc
12 mm
Width
Cr
8,100 N
Basic dynamic load rating, radial
C0r
7,200 N
Basic static load rating, radial
Cur
1,020 N
Fatigue load limit, radial
CG
27,500 1/min
Limiting speed
nϑr
21,800 1/min
Reference speed
≈m
4.8 g
Weight
