INA K12X18X12-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data

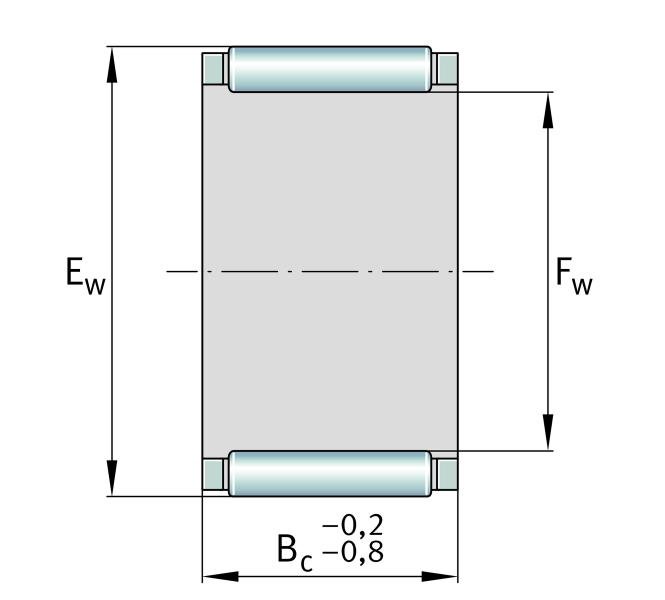

Fw
12 mm
Inner diameter of needle roller complement
Ew
18 mm
Outside diameter of needle roller complement
Bc
12 mm
Width
Cr
10,000 N
Basic dynamic load rating, radial
C0r
9,900 N
Basic static load rating, radial
Cur
1,430 N
Fatigue load limit, radial
CG
26,000 1/min
Limiting speed
nϑr
18,100 1/min
Reference speed
≈m
6.01 g
Weight
