INA K14X18X15-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

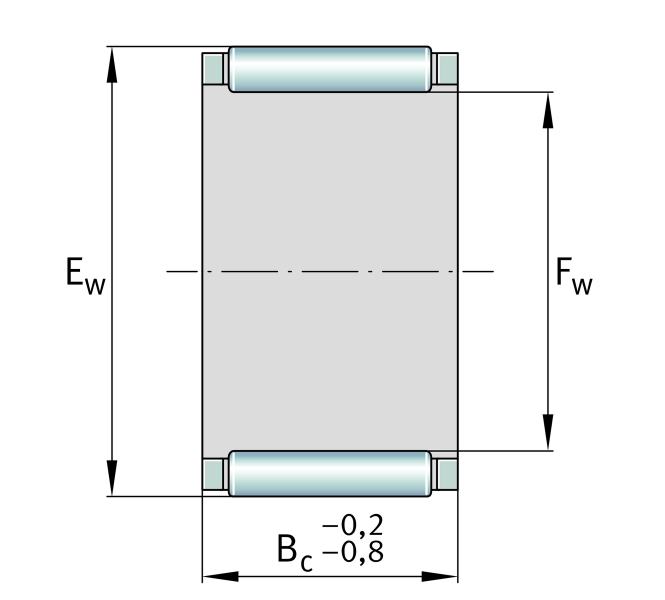

Main Dimensions & Performance Data
Fw
14 mm
Inner diameter of needle roller complement
Ew
18 mm
Outside diameter of needle roller complement
Bc
15 mm
Width
Cr
9,500 N
Basic dynamic load rating, radial
C0r
12,300 N
Basic static load rating, radial
Cur
1,570 N
Fatigue load limit, radial
CG
25,000 1/min
Limiting speed
nϑr
17,400 1/min
Reference speed
≈m
5 g
Weight
