INA K15X20X13
Needle Roller Bearings
Needle roller cage assembly K, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

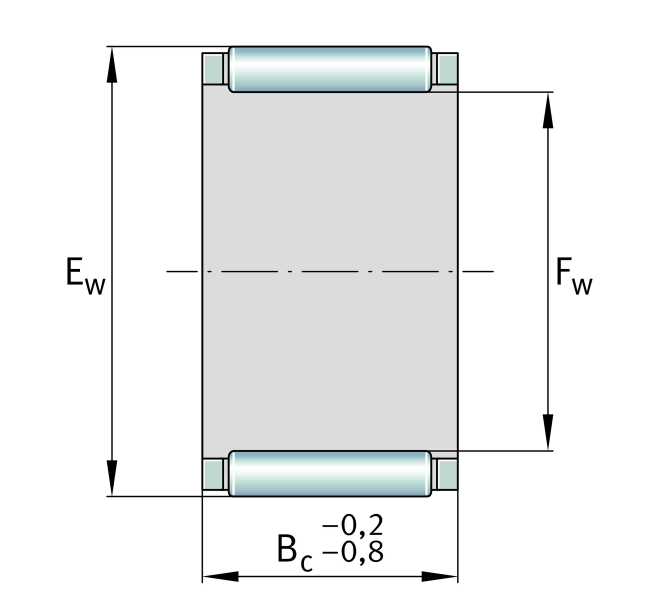

Main Dimensions & Performance Data
Fw
15 mm
Inner diameter of needle roller complement
Ew
20 mm
Outside diameter of needle roller complement
Bc
13 mm
Width
Cr
9,900 N
Basic dynamic load rating, radial
C0r
11,500 N
Basic static load rating, radial
Cur
1,460 N
Fatigue load limit, radial
CG
23,900 1/min
Limiting speed
nϑr
15,900 1/min
Reference speed
≈m
9.26 g
Weight
