INA K24X30X31-ZW
Needle Roller Bearings

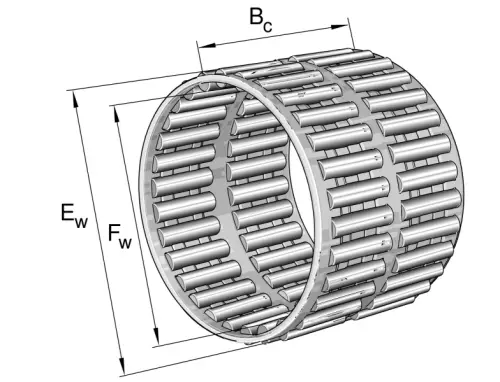

Needle roller cage assembly K..-ZW, two-row
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
Fw
24 mm
Inner diameter of needle roller complement
Ew
30 mm
Outside diameter of needle roller complement
Bc
31 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
43,500 N
Basic static load rating, radial
Cur
5,900 N
Fatigue load limit, radial
CG
18,100 1/min
Limiting speed
nϑr
10,400 1/min
Reference speed
≈m
32.8 g
Weight
