INA K30X35X20-TV/0-7
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

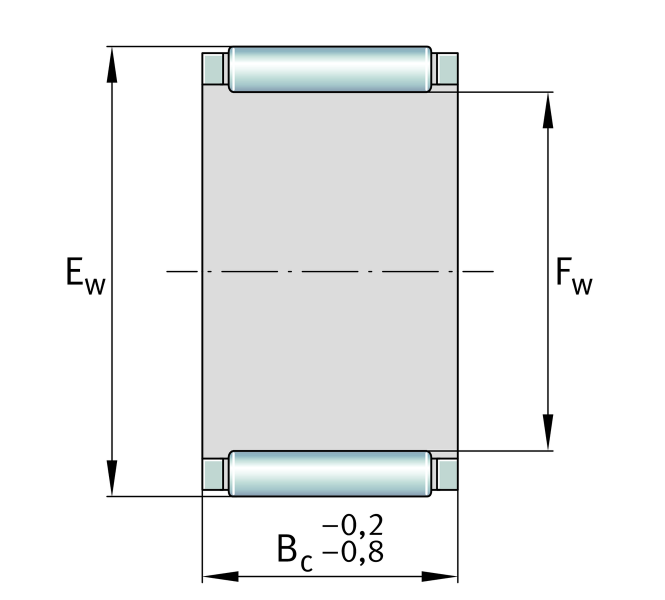

Main Dimensions & Performance Data
Fw
30 mm
Inner diameter of needle roller complement
Ew
35 mm
Outside diameter of needle roller complement
Bc
20 mm
Width
Cr
23,700 N
Basic dynamic load rating, radial
C0r
43,500 N
Basic static load rating, radial
Cur
5,800 N
Fatigue load limit, radial
CG
15,100 1/min
Limiting speed
nϑr
8,100 1/min
Reference speed
≈m
19.1 g
Weight
