INA K30X38X30-ZW-TV/0-7
Needle Roller Bearings
Needle roller cage assembly K..-ZW-TV, two-row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

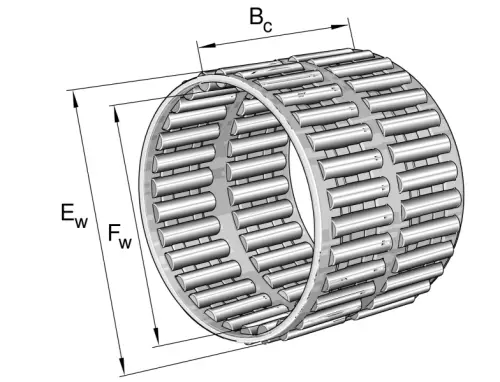

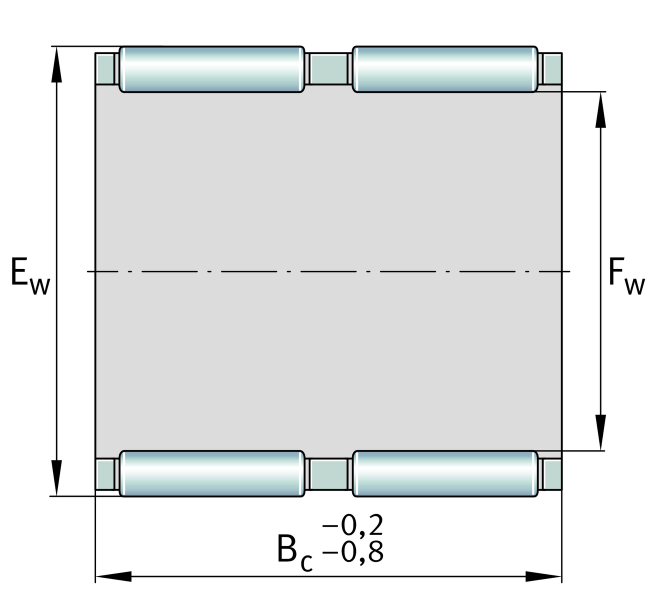

Main Dimensions & Performance Data
Fw
30 mm
Inner diameter of needle roller complement
Ew
38 mm
Outside diameter of needle roller complement
Bc
30 mm
Width
Cr
44,000 N
Basic dynamic load rating, radial
C0r
70,000 N
Basic static load rating, radial
Cur
9,300 N
Fatigue load limit, radial
CG
14,400 1/min
Limiting speed
nϑr
7,600 1/min
Reference speed
≈m
51.4 g
Weight
