INA K32X40X42-ZW-TV
Needle Roller Bearings
Needle roller cage assembly K..-ZW-TV, two-row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

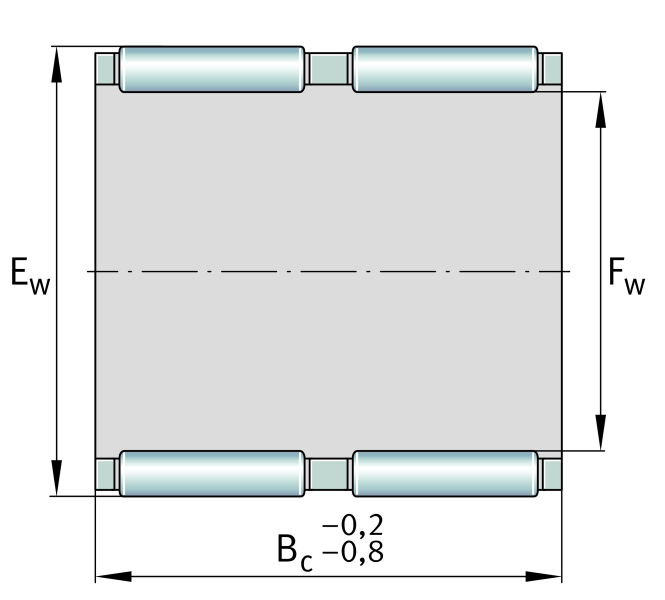

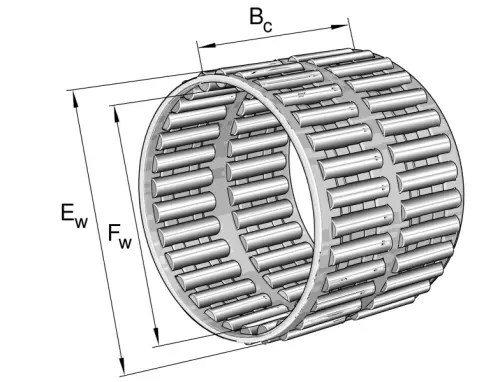

Main Dimensions & Performance Data
Fw
32 mm
Inner diameter of needle roller complement
Ew
40 mm
Outside diameter of needle roller complement
Bc
42 mm
Width
Cr
50,000 N
Basic dynamic load rating, radial
C0r
84,000 N
Basic static load rating, radial
Cur
10,700 N
Fatigue load limit, radial
CG
13,600 1/min
Limiting speed
nϑr
7,800 1/min
Reference speed
≈m
63.23 g
Weight
