INA K42X50X13/0-7
Needle Roller Bearings

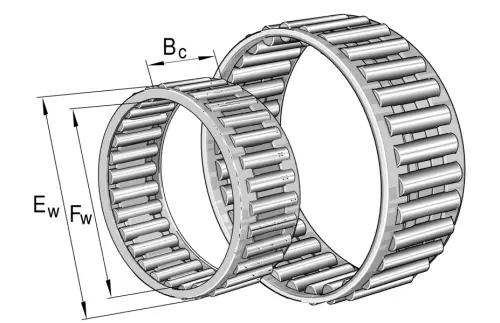

Needle roller cage assembly K, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

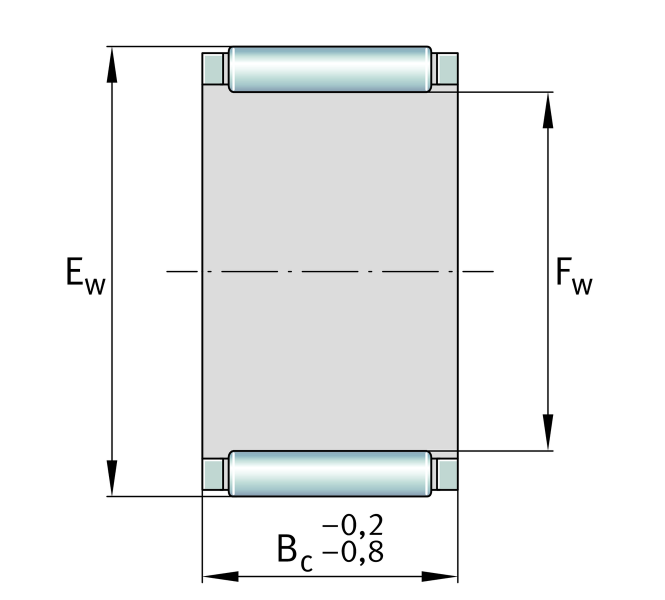

Main Dimensions & Performance Data
Fw
42 mm
Inner diameter of needle roller complement
Ew
50 mm
Outside diameter of needle roller complement
Bc
13 mm
Width
Cr
22,500 N
Basic dynamic load rating, radial
C0r
32,500 N
Basic static load rating, radial
Cur
4,500 N
Fatigue load limit, radial
CG
10,700 1/min
Limiting speed
nϑr
6,300 1/min
Reference speed
≈m
34.04 g
Weight
