INA K48X53X17/0-7
Needle Roller Bearings
Needle roller cage assembly K, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

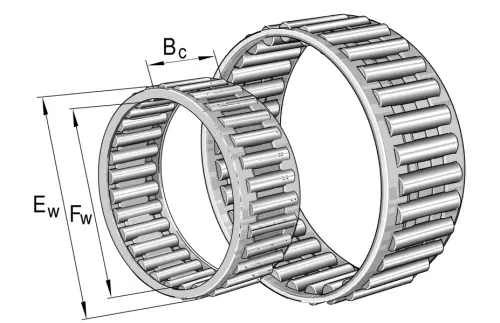

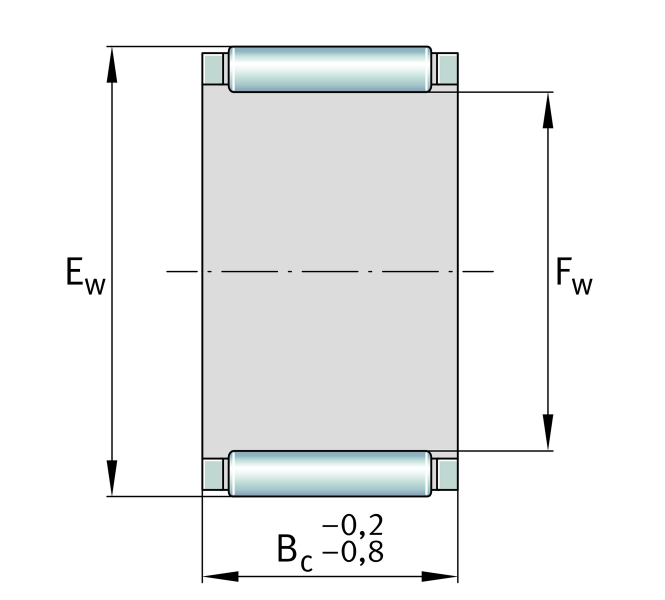

Main Dimensions & Performance Data
Fw
48 mm
Inner diameter of needle roller complement
Ew
53 mm
Outside diameter of needle roller complement
Bc
17 mm
Width
Cr
23,700 N
Basic dynamic load rating, radial
C0r
50,000 N
Basic static load rating, radial
Cur
6,400 N
Fatigue load limit, radial
CG
9,700 1/min
Limiting speed
nϑr
5,700 1/min
Reference speed
≈m
31.48 g
Weight
