INA K48X54X19/0-7
Needle Roller Bearings
Needle roller cage assembly K, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

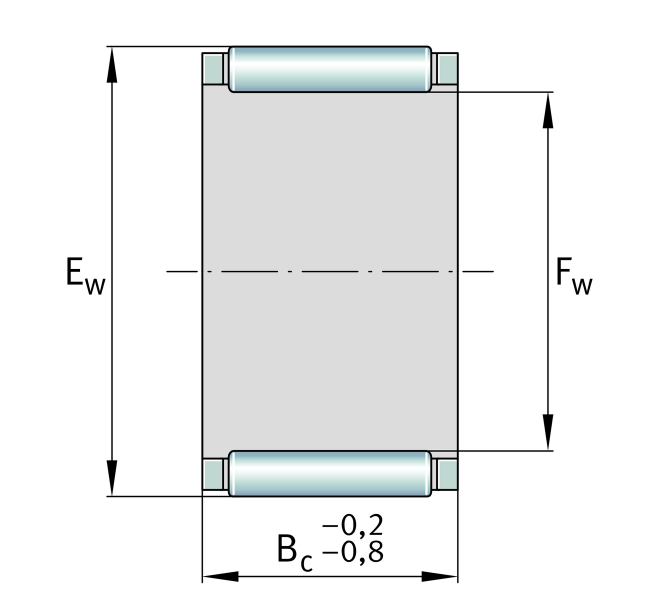

Main Dimensions & Performance Data
Fw
48 mm
Inner diameter of needle roller complement
Ew
54 mm
Outside diameter of needle roller complement
Bc
19 mm
Width
Cr
30,500 N
Basic dynamic load rating, radial
C0r
61,000 N
Basic static load rating, radial
Cur
8,200 N
Fatigue load limit, radial
CG
9,600 1/min
Limiting speed
nϑr
5,500 1/min
Reference speed
≈m
45.8 g
Weight
