INA K5X8X10-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

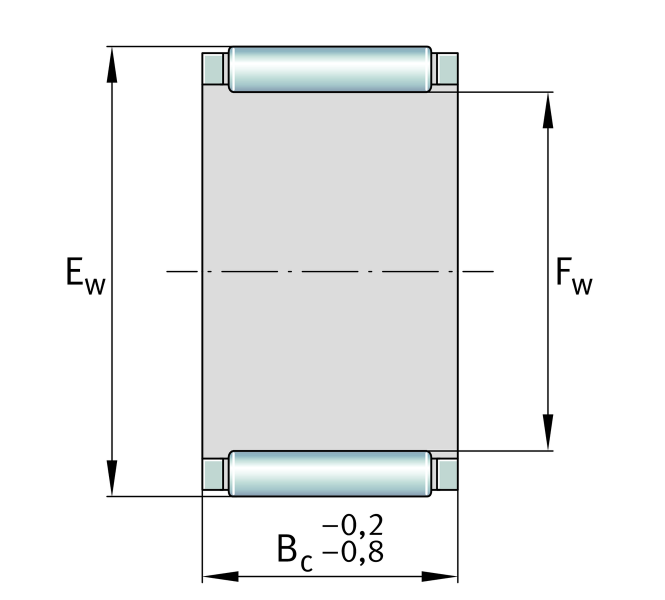

Main Dimensions & Performance Data
Fw
5 mm
Inner diameter of needle roller complement
Ew
8 mm
Outside diameter of needle roller complement
Bc
10 mm
Width
Cr
3,000 N
Basic dynamic load rating, radial
C0r
2,650 N
Basic static load rating, radial
Cur
355 N
Fatigue load limit, radial
CG
39,000 1/min
Limiting speed
nϑr
47,000 1/min
Reference speed
≈m
0.88 g
Weight
