INA K6X10X13-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

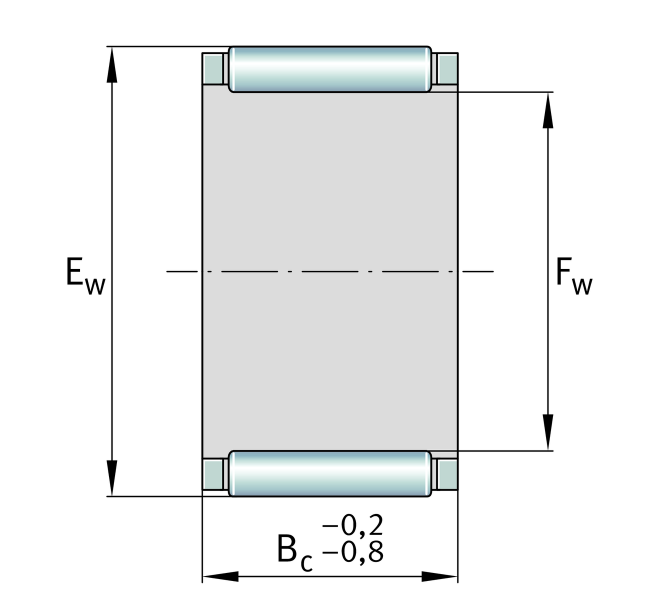

Main Dimensions & Performance Data
Fw
6 mm
Inner diameter of needle roller complement
Ew
10 mm
Outside diameter of needle roller complement
Bc
13 mm
Width
Cr
3,800 N
Basic dynamic load rating, radial
C0r
3,100 N
Basic static load rating, radial
Cur
400 N
Fatigue load limit, radial
CG
35,500 1/min
Limiting speed
nϑr
40,000 1/min
Reference speed
≈m
1.59 g
Weight
