INA K6X9X8-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

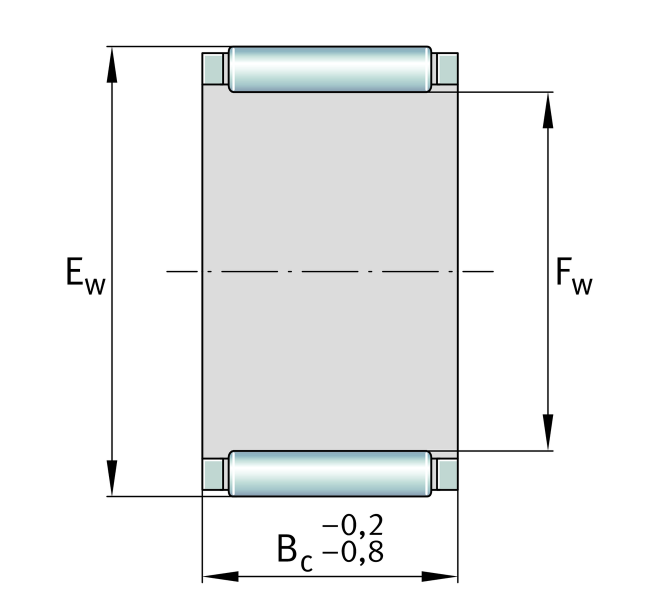

Main Dimensions & Performance Data
Fw
6 mm
Inner diameter of needle roller complement
Ew
9 mm
Outside diameter of needle roller complement
Bc
8 mm
Width
Cr
2,600 N
Basic dynamic load rating, radial
C0r
2,280 N
Basic static load rating, radial
Cur
290 N
Fatigue load limit, radial
CG
36,500 1/min
Limiting speed
nϑr
41,000 1/min
Reference speed
≈m
0.7 g
Weight
