INA K7X9X7-TV
Needle Roller Bearings
Needle roller cage assembly K..-TV, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

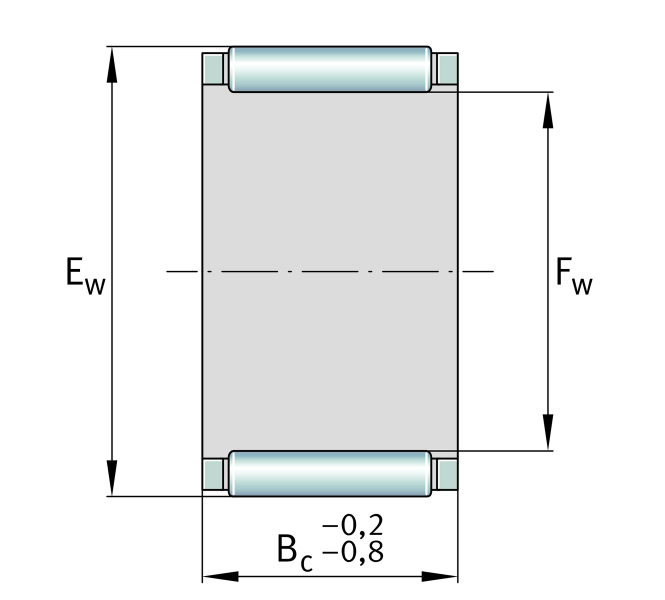

Main Dimensions & Performance Data
Fw
7 mm
Inner diameter of needle roller complement
Ew
9 mm
Outside diameter of needle roller complement
Bc
7 mm
Width
Cr
1,680 N
Basic dynamic load rating, radial
C0r
1,700 N
Basic static load rating, radial
Cur
207 N
Fatigue load limit, radial
CG
35,500 1/min
Limiting speed
nϑr
40,500 1/min
Reference speed
≈m
380.062 mg
Weight
