INA KBK18X22X24(CS)/0-7
Needle Roller Bearings
Needle roller cage assembly KBK, single row, similar KBK, piston pin bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

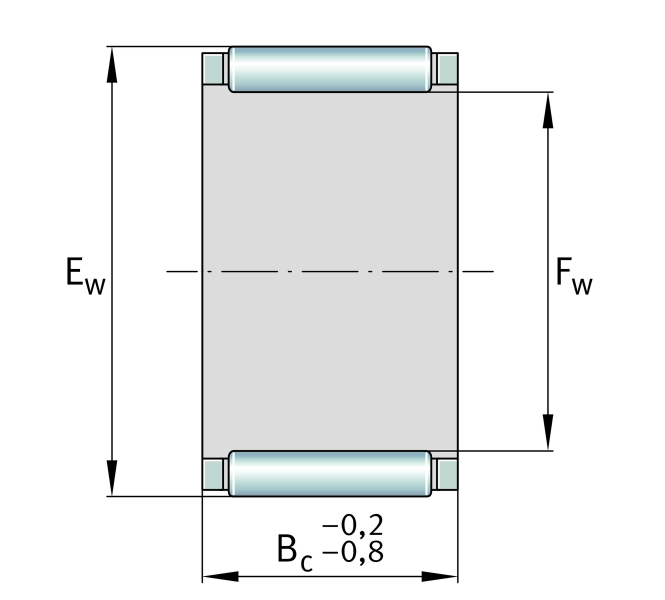

Main Dimensions & Performance Data
Fw
18 mm
Under roller diameter
Ew
22 mm
Outside diameter of needle roller complement
Bc
24 mm
Width
Cr
14,100 N
Basic dynamic load rating, radial
C0r
22,000 N
Basic static load rating, radial
Cur
3,100 N
Fatigue load limit, radial
CG
22,400 1/min
Limiting speed
≈m
18.52 g
Weight
