INA KZK25X32X16-A/0-7
Needle Roller Bearings

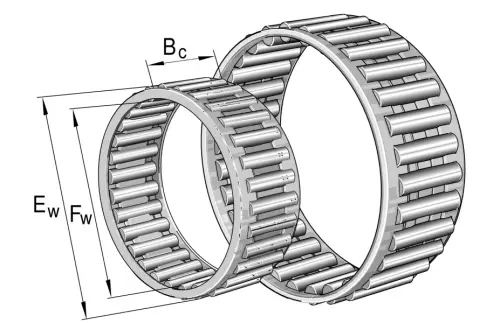

Needle roller cage assembly KZK, single row, similar KZK, crank pin bearing
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
Fw
25 mm
Inner diameter of needle roller complement
Ew
32 mm
Outside diameter of needle roller complement
Bc
16 mm
Width
Cr
18,200 N
Basic dynamic load rating, radial
C0r
23,100 N
Basic static load rating, radial
Cur
3,100 N
Fatigue load limit, radial
CG
17,200 1/min
Limiting speed
≈m
24.98 g
Weight
