INA KZK6X9X11/0-6
Needle Roller Bearings

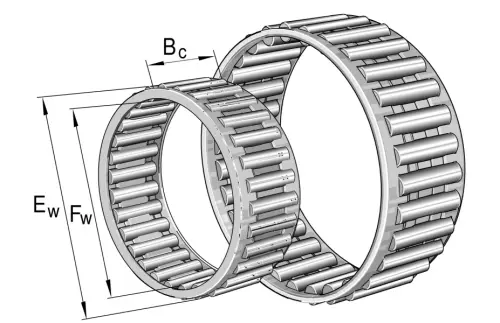

Needle roller cage assembly KZK, single row, similar KZK, crank pin bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

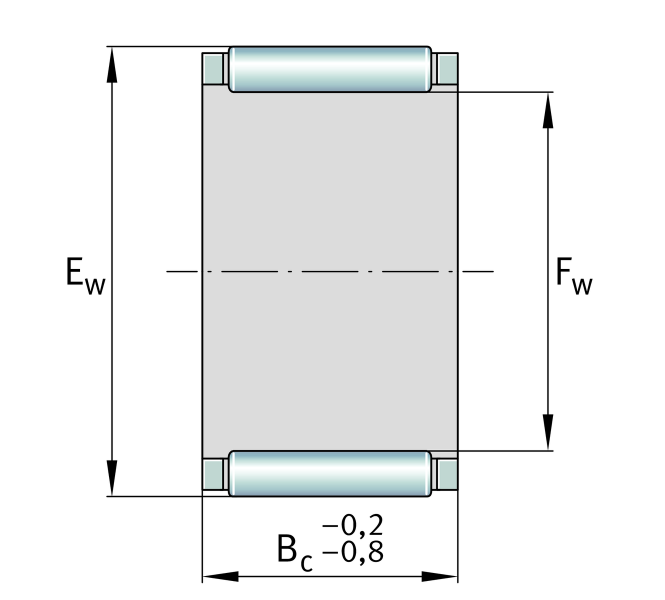

Main Dimensions & Performance Data
Fw
6 mm
Inner diameter of needle roller complement
Ew
9 mm
Outside diameter of needle roller complement
Bc
11 mm
Width
Cr
3,850 N
Basic dynamic load rating, radial
C0r
3,750 N
Basic static load rating, radial
Cur
500 N
Fatigue load limit, radial
CG
36,500 1/min
Limiting speed
≈m
0.002 kg
Weight
