INA LR20X25X16,5
Needle Roller Bearings
Inner ring LR, cylindrical
(BRAND)：INA
(Availability)：In Stock

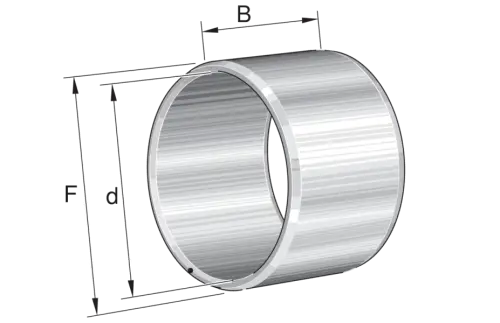

Main Dimensions & Performance Data
d
20 mm
Bore diameter
F
25 mm
Raceway diameter inner ring
B
16.5 mm
Width
rmin
0.3 mm
Minimum chamfer dimension
30 °
Chamfer angle
≈m
22.3 g
Weight
