INA NA4822-XL-C2
Needle Roller Bearings
Needle roller bearing NA..-XL, single row, with inner ring, outer ring with 2 bords
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

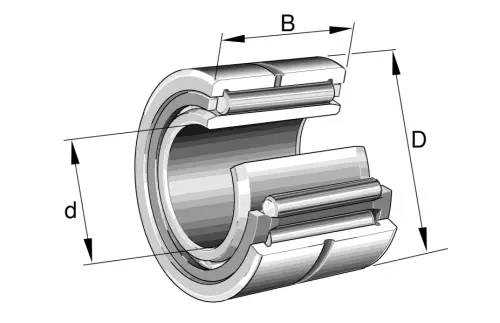

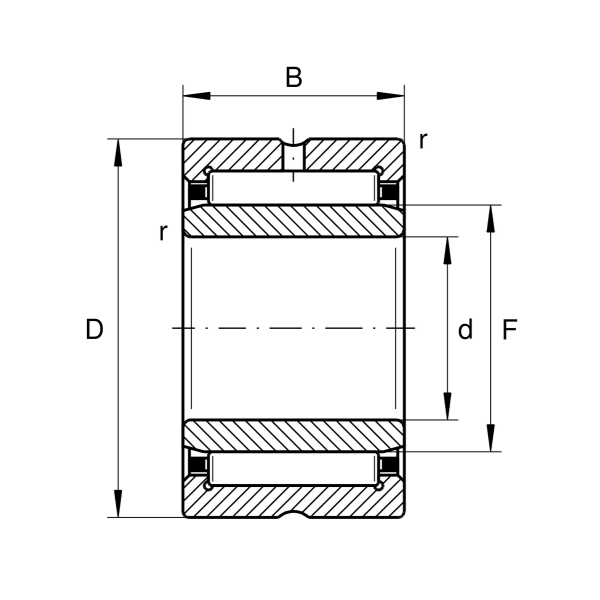

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
140 mm
Outside diameter
B
30 mm
Width
Cr
106,000 N
Basic dynamic load rating, radial
C0r
216,000 N
Basic static load rating, radial
Cur
36,500 N
Fatigue load limit, radial
CG
3,900 1/min
Limiting speed
nϑr
2,270 1/min
Reference speed
≈m
1.079 kg
Weight
