INA NA4824-XL-C2
Needle Roller Bearings
Needle roller bearing NA..-XL, single row, with inner ring, outer ring with 2 bords
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

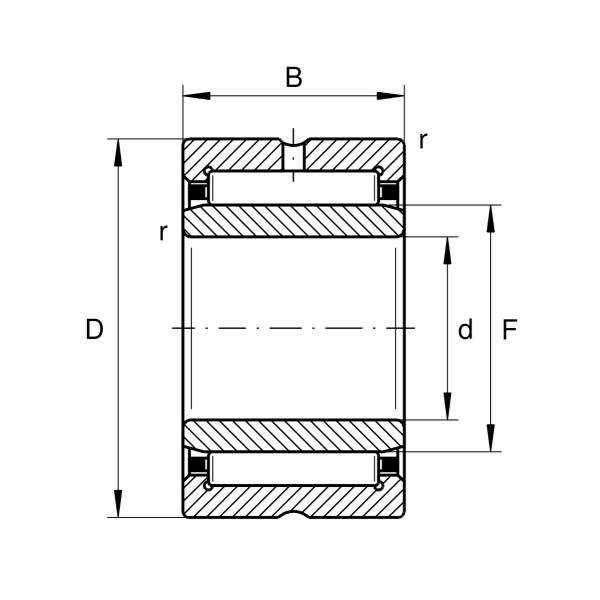

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
150 mm
Outside diameter
B
30 mm
Width
Cr
112,000 N
Basic dynamic load rating, radial
C0r
239,000 N
Basic static load rating, radial
Cur
39,500 N
Fatigue load limit, radial
CG
3,600 1/min
Limiting speed
nϑr
2,070 1/min
Reference speed
≈m
1.16 kg
Weight
