INA NA4906-2RSR-ASR3-XL
Needle Roller Bearings

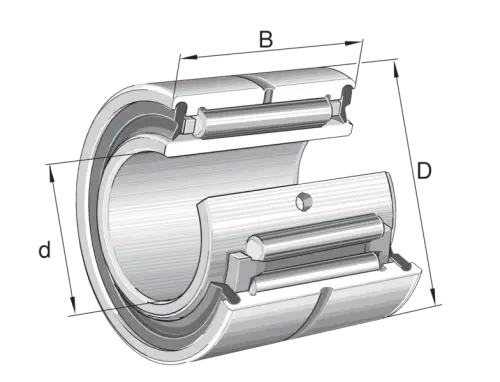

Needle roller bearings NA49..-2RSR, dimension series 49, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock

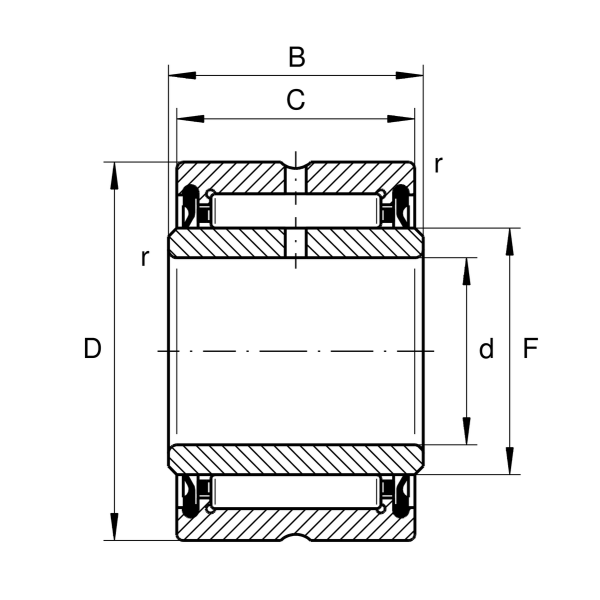

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
47 mm
Outside diameter
B
18 mm
Width, inner ring
Cr
23,900 N
Basic dynamic load rating, radial
C0r
28,500 N
Basic static load rating, radial
Cur
5,500 N
Fatigue load limit, radial
nG Grease
7,500 1/min
Limiting speed for grease lubrication
≈m
0.107 kg
Weight
