INA NA6912-ZW-XL
Needle Roller Bearings

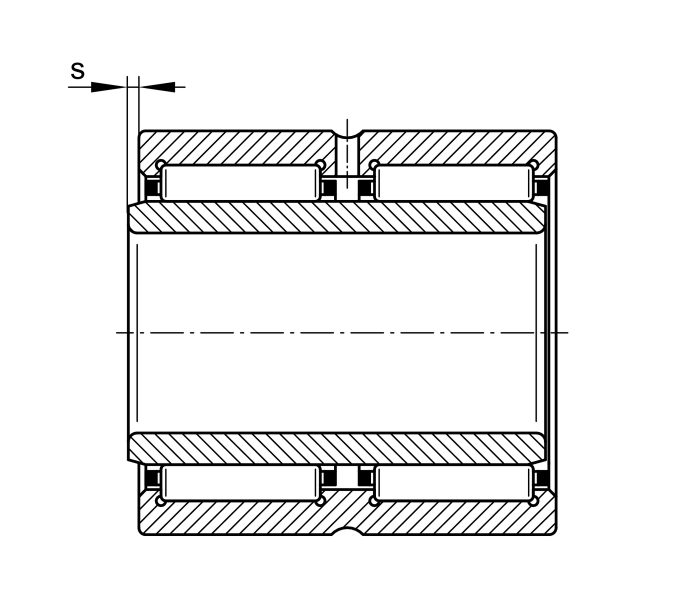

Needle roller bearings NA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
85 mm
Outside diameter
B
45 mm
Width
Cr
106,000 N
Basic dynamic load rating, radial
C0r
191,000 N
Basic static load rating, radial
Cur
33,000 N
Fatigue load limit, radial
CG
6,700 1/min
Limiting speed
nϑr
3,700 1/min
Reference speed
≈m
0.794 kg
Weight
