INA NA6913-ZW-XL
Needle Roller Bearings
Needle roller bearings NA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

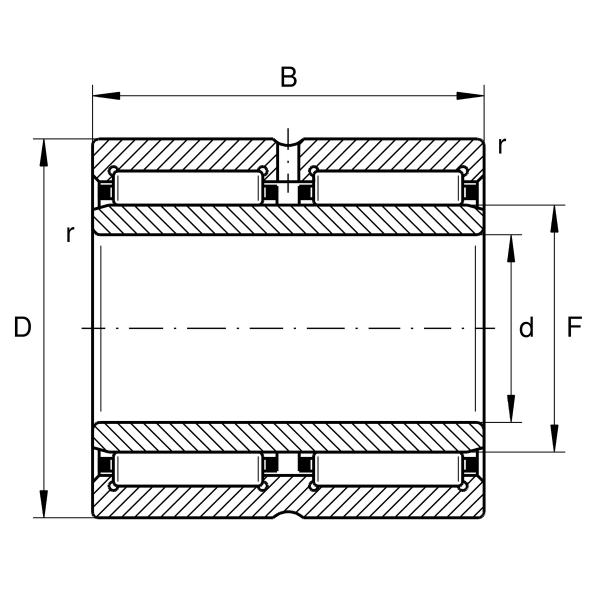

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
90 mm
Outside diameter
B
45 mm
Width
Cr
108,000 N
Basic dynamic load rating, radial
C0r
198,000 N
Basic static load rating, radial
Cur
34,500 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
0.852 kg
Weight
