INA NA6916-ZW-XL
Needle Roller Bearings

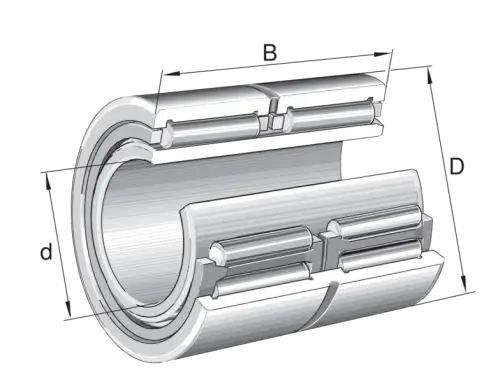

Needle roller bearings NA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

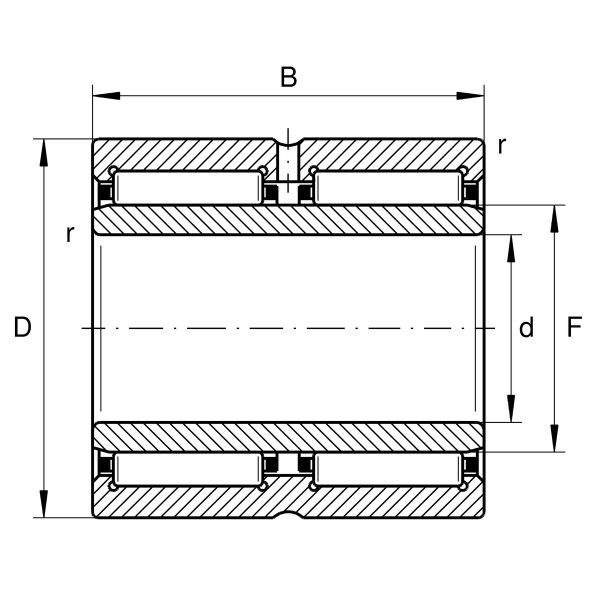

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
110 mm
Outside diameter
B
54 mm
Width
Cr
153,000 N
Basic dynamic load rating, radial
C0r
300,000 N
Basic static load rating, radial
Cur
54,000 N
Fatigue load limit, radial
CG
5,100 1/min
Limiting speed
nϑr
2,900 1/min
Reference speed
≈m
1,496.2 g
Weight
