INA NAO17X30X13-XL
Needle Roller Bearings

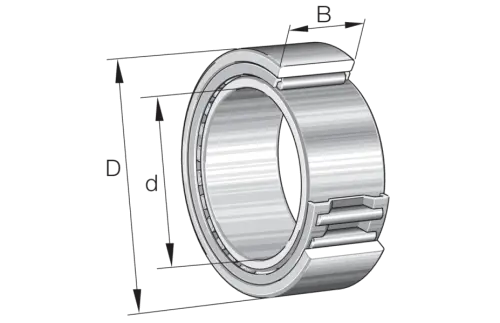

Needle roller bearings NAO, without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

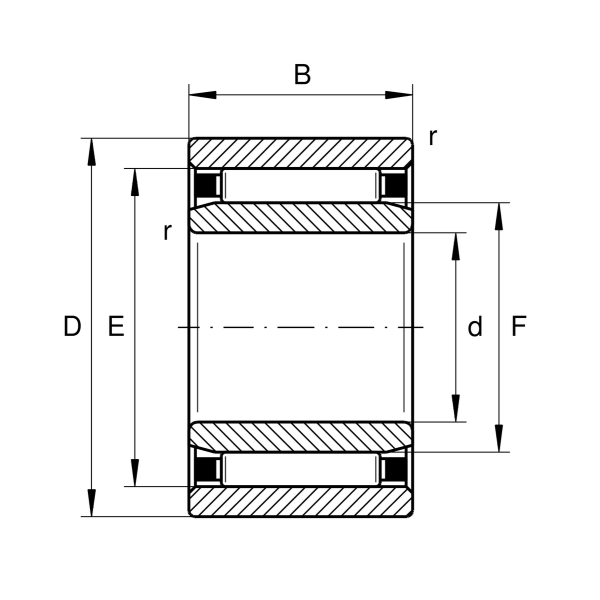

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
30 mm
Outside diameter
B
13 mm
Width
Cr
11,800 N
Basic dynamic load rating, radial
C0r
15,900 N
Basic static load rating, radial
Cur
2,600 N
Fatigue load limit, radial
CG
20,400 1/min
Limiting speed
nϑr
11,100 1/min
Reference speed
≈m
42.1 g
Weight

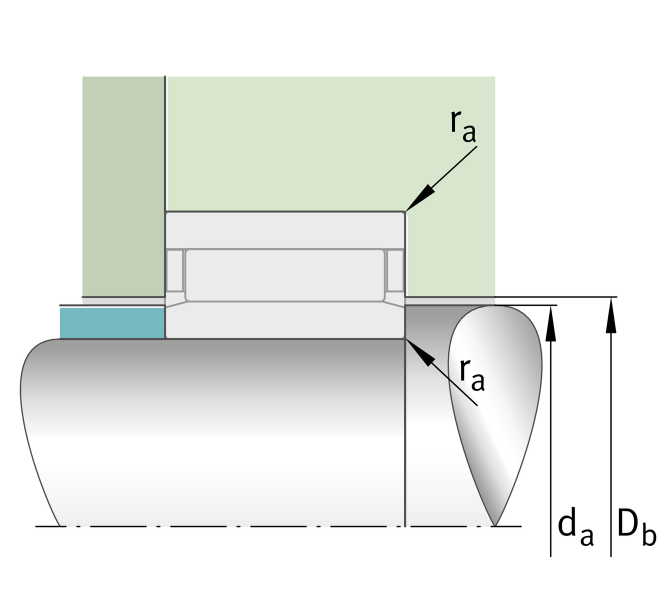

Mounting dimensions
da
21.5 mm
Mounting dimension
Db
22.4 mm
Shoulder diameter axial guidance NK/housing

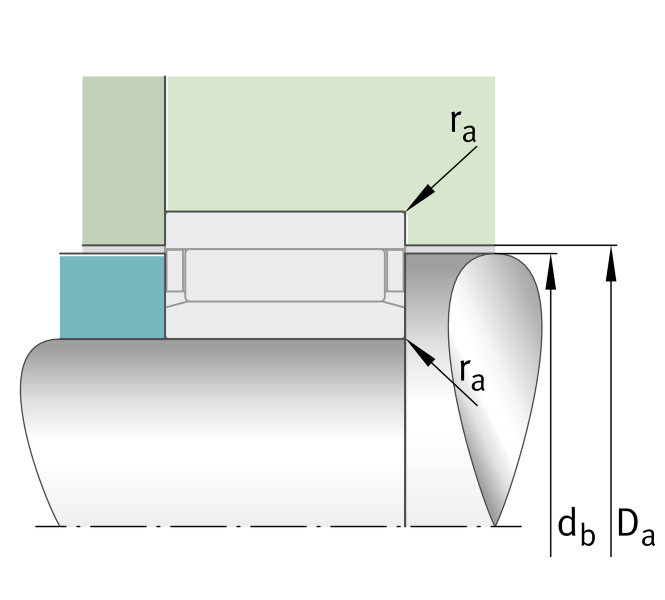

db
25.6 mm
Shoulder diameter axial guidance NK/shaft
Da
26.3 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
