INA NK37/30-XL
Needle Roller Bearings
Needle roller bearings NK, light series
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

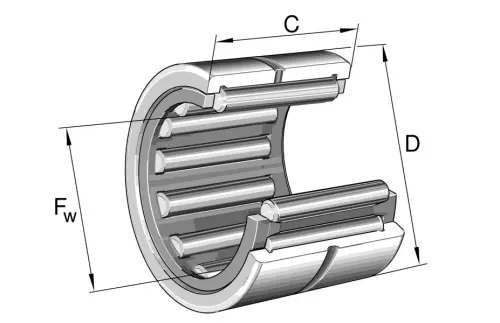

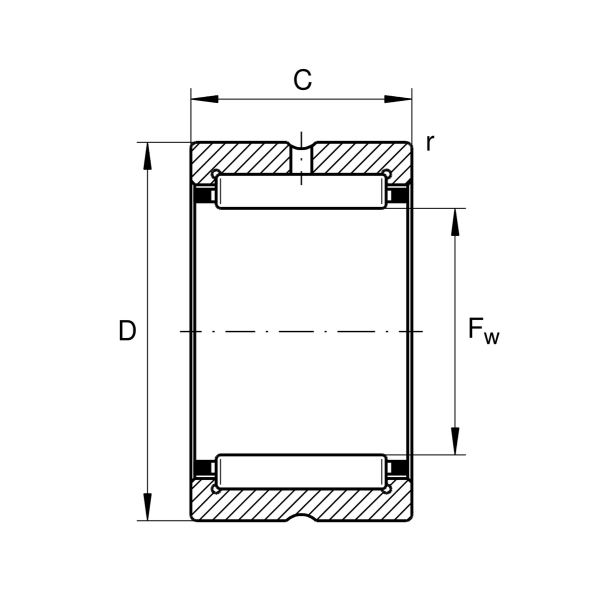

Main Dimensions & Performance Data
Fw
37 mm
Under roller diameter
D
47 mm
Outside diameter
C
30 mm
Width, outer ring
Cr
42,000 N
Basic dynamic load rating, radial
C0r
73,000 N
Basic static load rating, radial
Cur
13,700 N
Fatigue load limit, radial
CG
12,300 1/min
Limiting speed
nϑr
7,200 1/min
Reference speed
≈m
113 g
Weight
