INA NK9/12-TV-XL
Needle Roller Bearings
Needle roller bearings NK, light series
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

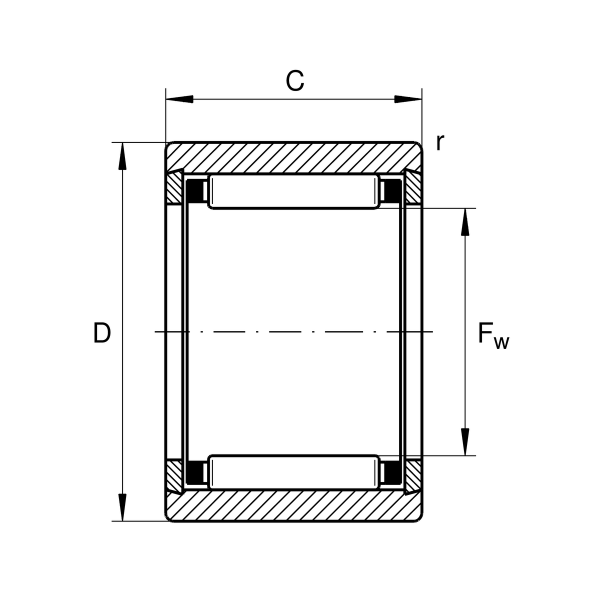

Main Dimensions & Performance Data
Fw
9 mm
Under roller diameter
D
16 mm
Outside diameter
C
12 mm
Width, outer ring
Cr
5,100 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
860 N
Fatigue load limit, radial
CG
31,000 1/min
Limiting speed
nϑr
32,000 1/min
Reference speed
≈m
9.67 g
Weight
