INA NKI5/16-TV-XL
Needle Roller Bearings
Needle roller bearings NKI, light series
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

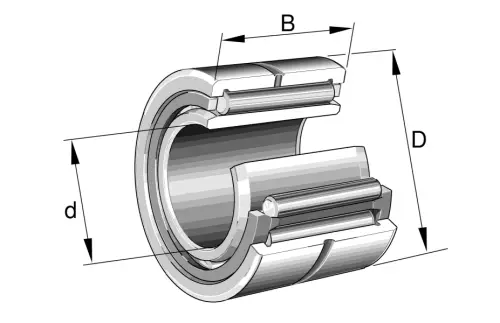

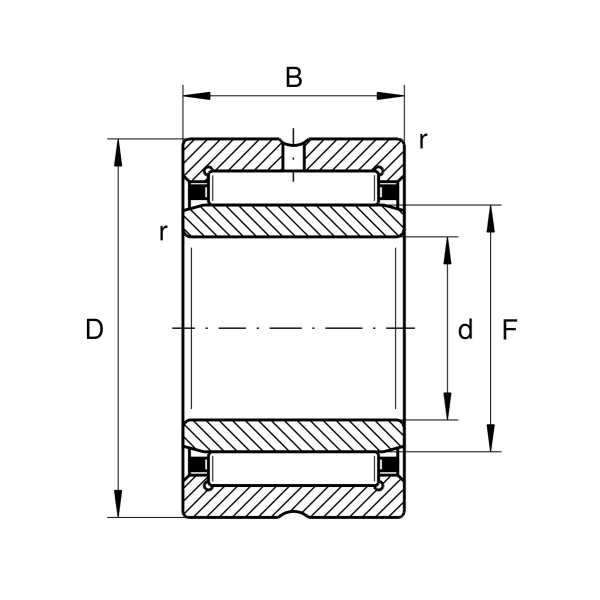

Main Dimensions & Performance Data
d
5 mm
Bore diameter
D
15 mm
Outside diameter
B
16 mm
Width
Cr
5,800 N
Basic dynamic load rating, radial
C0r
5,800 N
Basic static load rating, radial
Cur
990 N
Fatigue load limit, radial
CG
32,500 1/min
Limiting speed
nϑr
32,000 1/min
Reference speed
≈m
15.43 g
Weight
