INA NKX17-XL
Needle Roller/Axial Ball Bearings
Needle roller/axial ball bearings NKX, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

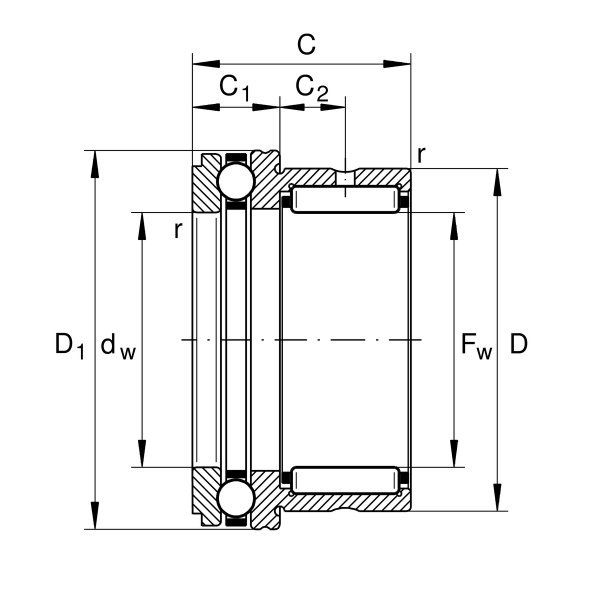

Main Dimensions & Performance Data
Fw
17 mm
Bore diameter
D
26 mm
Outside diameter
C
25 mm
Height
Cr
13,500 N
Basic dynamic load rating, radial
C0r
15,000 N
Basic static load rating, radial
Ca
10,800 N
Basic dynamic load rating, axial
C0a
18,200 N
Basic static load rating, axial
Cur
2,800 N
Fatigue load limit, radial
Cua
900 N
Fatigue load limit, axial
CG
8,500 1/min
Limiting speed
≈m
50.87 g
Weight

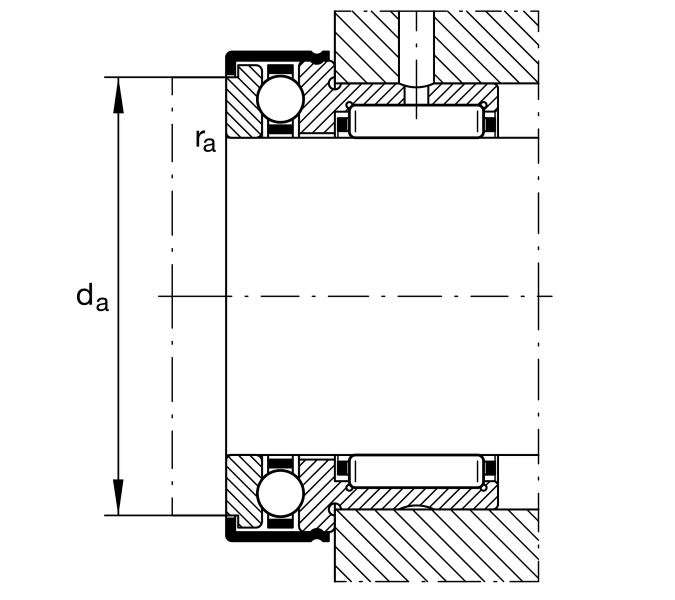

Mounting dimensions
da
25.7 mm
Mounting dimension shaft shoulder
ra max
0.3 mm
Maximum recess radius
