INA NKXR50-XL
Needle Roller/Axial Cylindrical Roller Bearings
Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

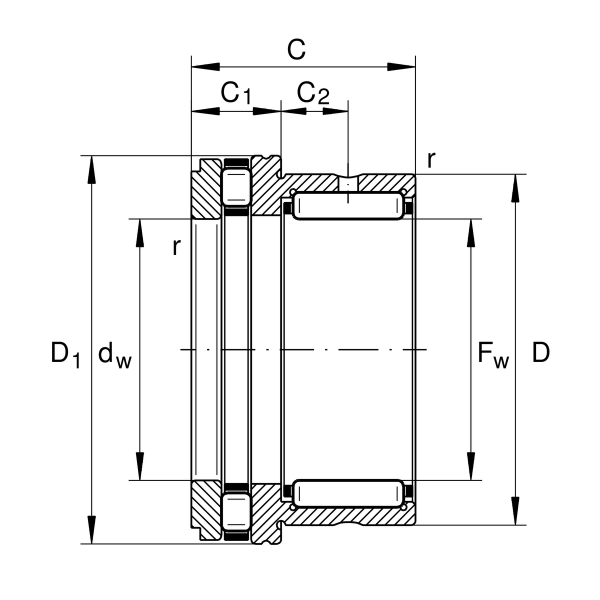

Main Dimensions & Performance Data
Fw
50 mm
Bore diameter
D
62 mm
Outside diameter
C
35 mm
Height
Cr
43,000 N
Basic dynamic load rating, radial
C0r
74,000 N
Basic static load rating, radial
Ca
62,000 N
Basic dynamic load rating, axial
C0a
177,000 N
Basic static load rating, axial
Cur
12,900 N
Fatigue load limit, radial
Cua
17,700 N
Fatigue load limit, axial
CG
4,800 1/min
Limiting speed
nϑr
1,700 1/min
Reference speed
≈m
267.82 g
Weight

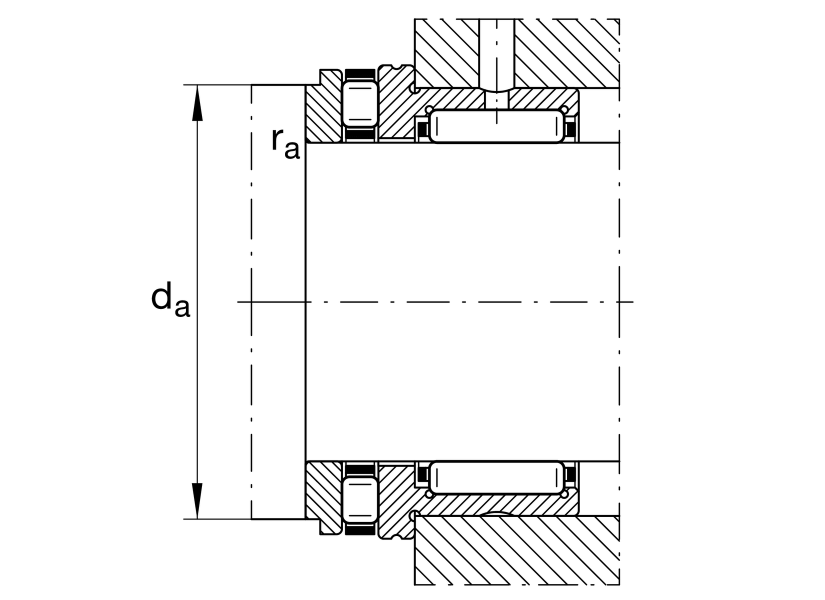

Mounting dimensions
da
65.5 mm
Mounting dimension shaft shoulder
ra max
0.6 mm
Maximum recess radius
