INA RNA6914-ZW-XL
Needle Roller Bearings

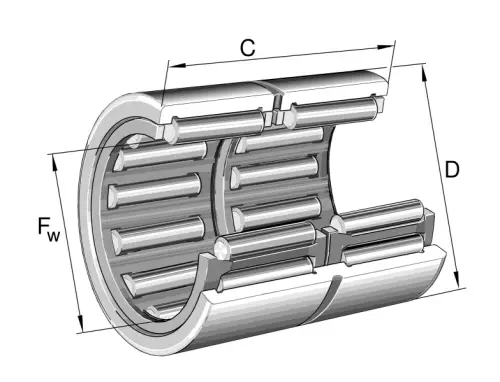

Needle roller bearings RNA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

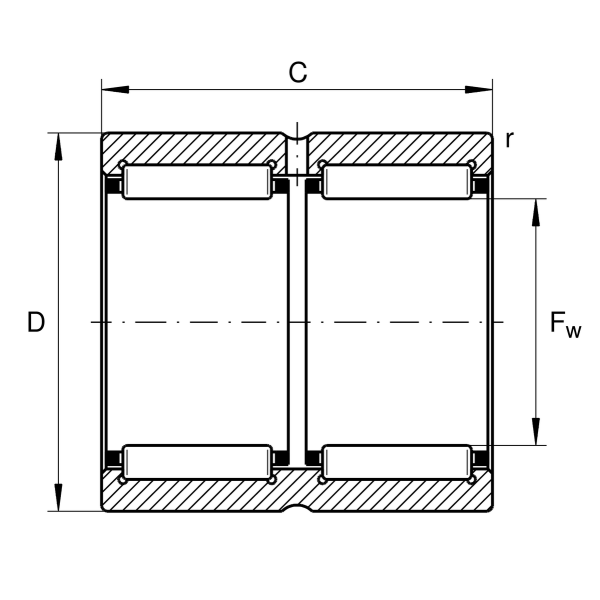

Main Dimensions & Performance Data
Fw
80 mm
Under roller diameter
D
100 mm
Outside diameter
Cr
145,000 N
Basic dynamic load rating, radial
C0r
265,000 N
Basic static load rating, radial
Cur
48,000 N
Fatigue load limit, radial
CG
5,700 1/min
Limiting speed
nG Grease
3,400 1/min
Limiting speed for grease lubrication
nϑr
3,450 1/min
Reference speed
≈m
851.35 g
Weight
