INA RNA6916-ZW-XL
Needle Roller Bearings

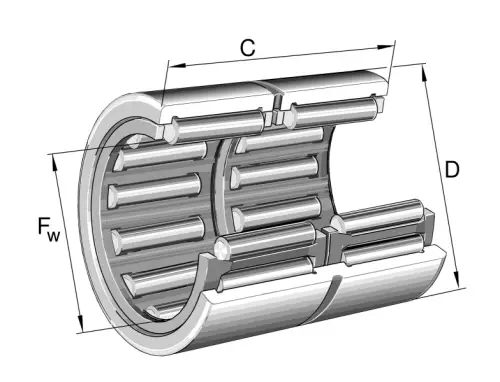

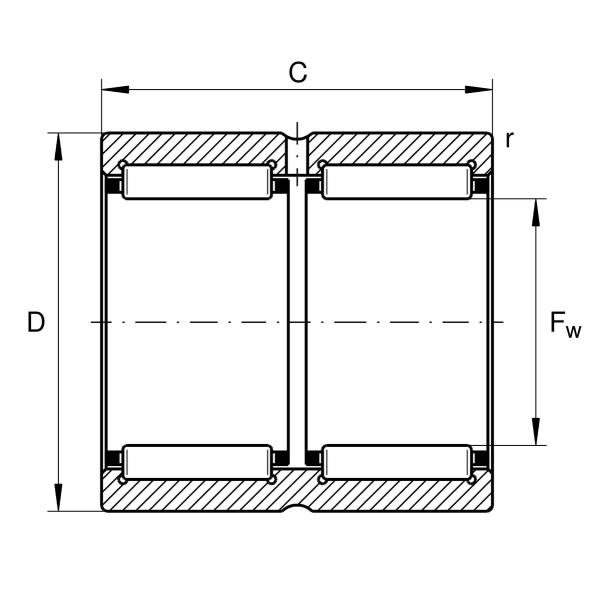

Needle roller bearings RNA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
Fw
90 mm
Under roller diameter
D
110 mm
Outside diameter
Cr
153,000 N
Basic dynamic load rating, radial
C0r
300,000 N
Basic static load rating, radial
Cur
54,000 N
Fatigue load limit, radial
CG
5,100 1/min
Limiting speed
nG Grease
3,050 1/min
Limiting speed for grease lubrication
nϑr
3,050 1/min
Reference speed
≈m
941.8 g
Weight
