INA RNA6917-ZW-XL
Needle Roller Bearings

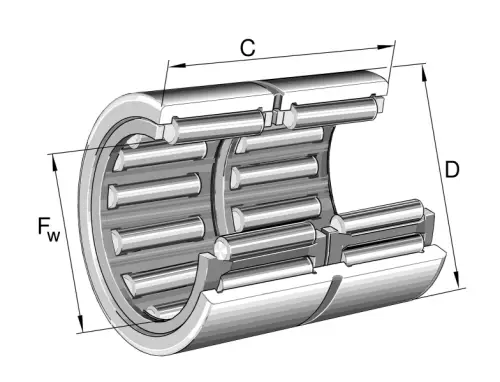

Needle roller bearings RNA69..-ZW, Dimension series 69, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

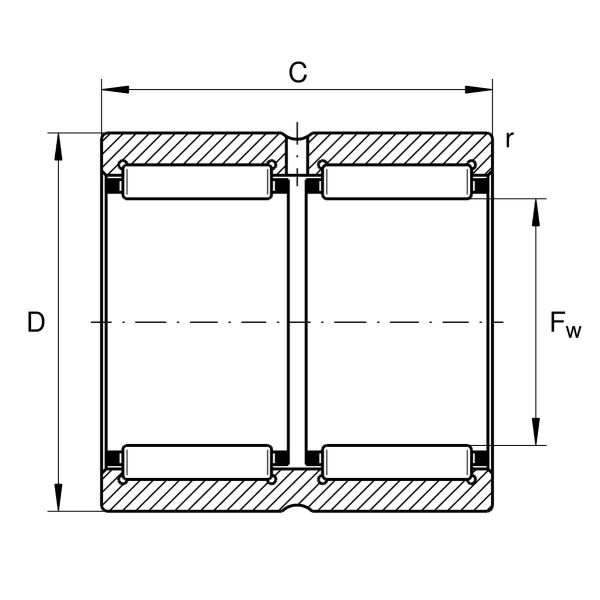

Main Dimensions & Performance Data
Fw
100 mm
Under roller diameter
D
120 mm
Outside diameter
Cr
188,000 N
Basic dynamic load rating, radial
C0r
400,000 N
Basic static load rating, radial
Cur
72,000 N
Fatigue load limit, radial
CG
4,600 1/min
Limiting speed
nG Grease
2,750 1/min
Limiting speed for grease lubrication
nϑr
2,850 1/min
Reference speed
≈m
1.211 kg
Weight
