INA RNAO10X17X10-TV-XL
Needle Roller Bearings

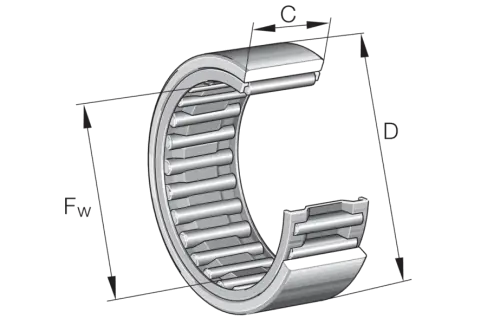

Needle roller bearings RNAO, without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

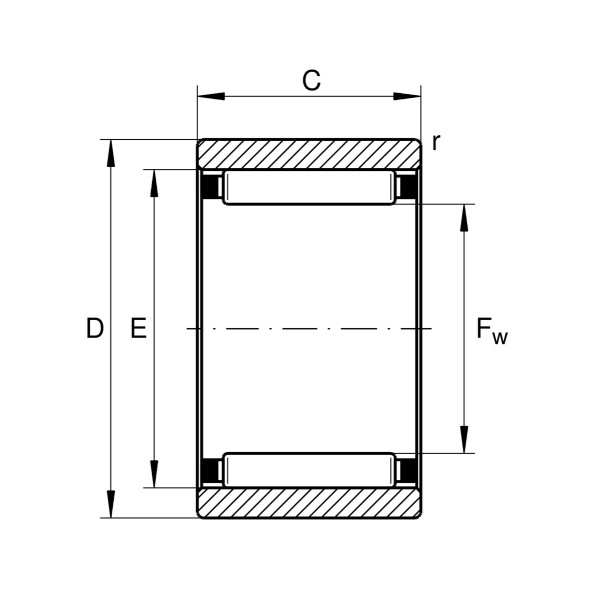

Main Dimensions & Performance Data
Fw
10 mm
Under roller diameter
D
17 mm
Outside diameter
C
10 mm
Width, outer ring
Cr
5,300 N
Basic dynamic load rating, radial
C0r
5,500 N
Basic static load rating, radial
Cur
940 N
Fatigue load limit, radial
CG
29,500 1/min
Limiting speed
nϑr
28,000 1/min
Reference speed
≈m
8.8 g
Weight

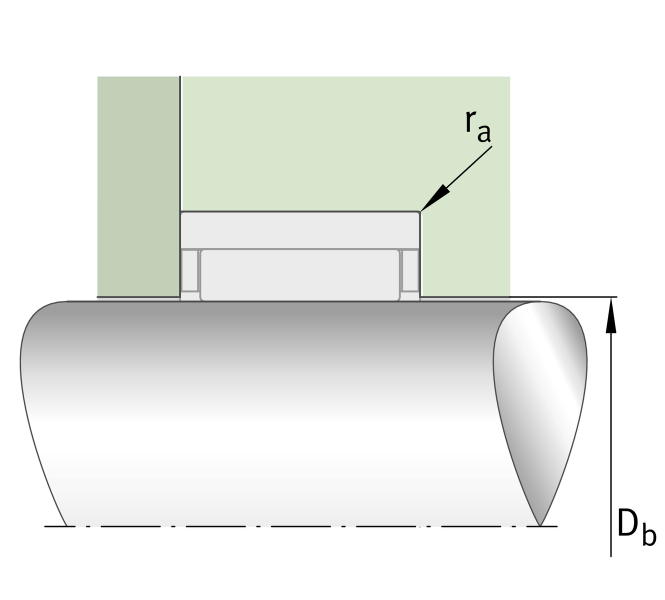

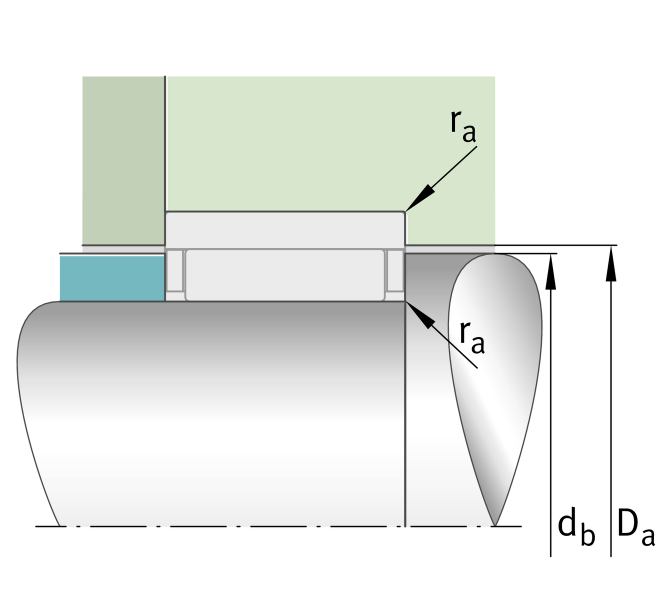

Mounting dimensions
Db
10.3 mm
Shoulder diameter axial guidance NK/housing
db
12.7 mm
Shoulder diameter axial guidance NK/shaft
Da
13.3 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
