INA RNAO25X35X17
Needle Roller Bearings
Needle roller bearing RNAO, two-row, no inner ring, no rib
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

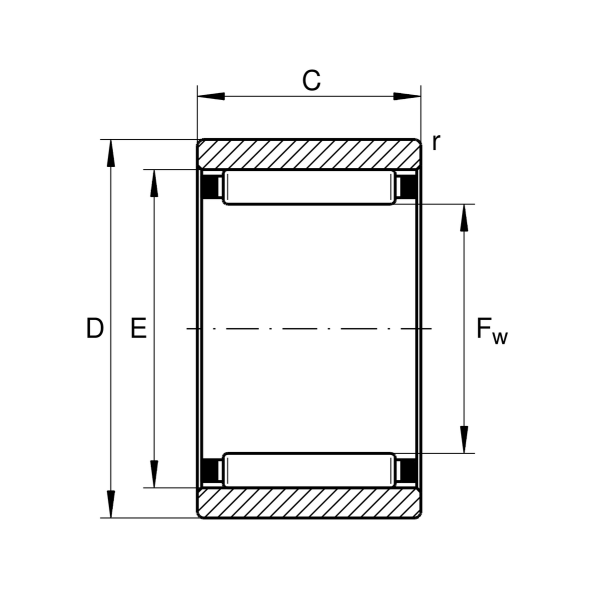

Main Dimensions & Performance Data
Fw
25 mm
Under roller diameter
D
35 mm
Outside diameter
C
17 mm
Width, outer ring
Cr
14,900 N
Basic dynamic load rating, radial
C0r
26,000 N
Basic static load rating, radial
Cur
3,500 N
Fatigue load limit, radial
CG
18,100 1/min
Limiting speed
nϑr
11,000 1/min
Reference speed
≈m
54.39 g
Weight
Mounting dimensions
Db
25.6 mm
Shoulder diameter axial guidance NK/housing
db
28.4 mm
Shoulder diameter axial guidance NK/shaft
Da
29.5 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
