INA RNAO35X45X26-ZW-ASR1-XL
Needle Roller Bearings

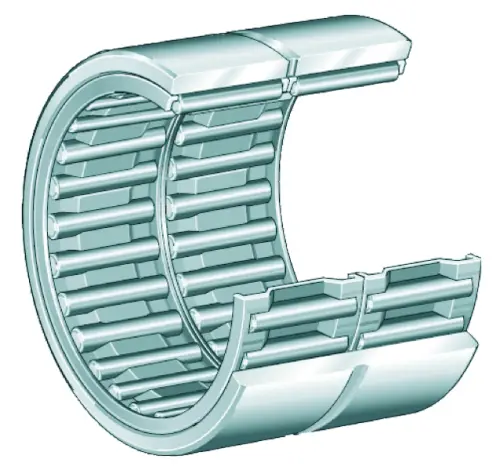

Needle roller bearings RNAO..-ZW-ASR1, without ribs, double row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

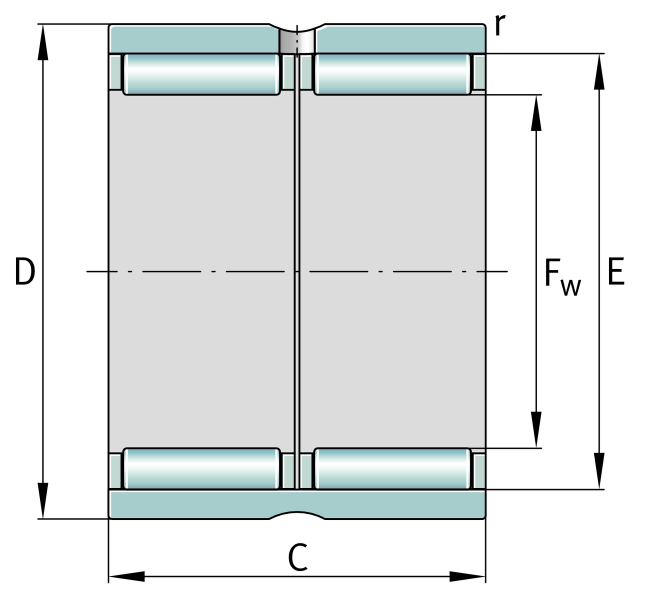

Main Dimensions & Performance Data
Fw
35 mm
Under roller diameter
D
45 mm
Outside diameter
C
26 mm
Width, outer ring
Cr
31,500 N
Basic dynamic load rating, radial
C0r
56,000 N
Basic static load rating, radial
Cur
9,100 N
Fatigue load limit, radial
CG
13,100 1/min
Limiting speed
nϑr
7,800 1/min
Reference speed
≈m
0.091 kg
Weight

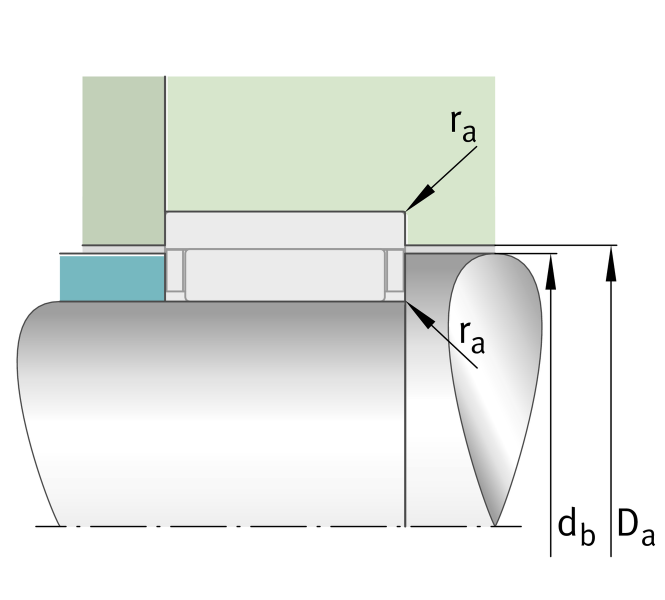

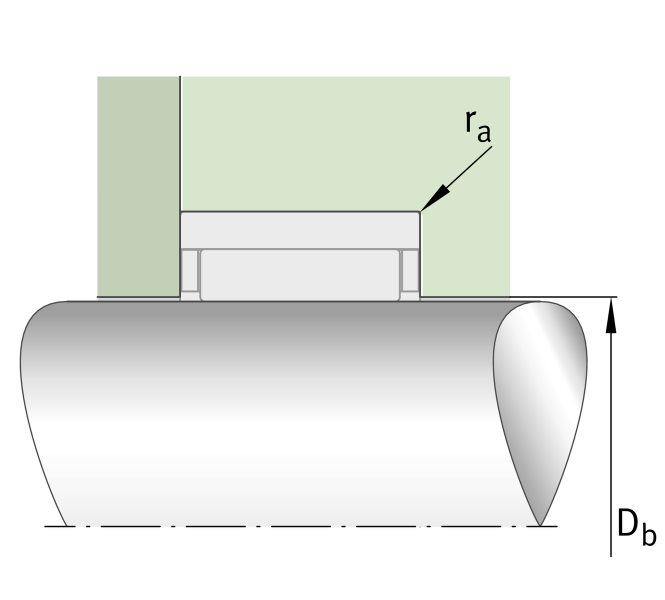

Mounting dimensions
Db
35.6 mm
Shoulder diameter axial guidance NK/housing
db
39.4 mm
Shoulder diameter axial guidance NK/shaft
Da
40.5 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
