INA RNAO40X50X17-XL
Needle Roller Bearings
Needle roller bearings RNAO, without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

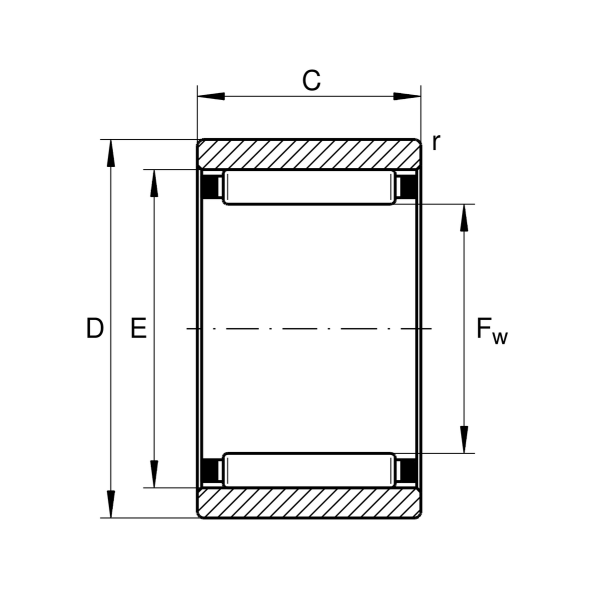

Main Dimensions & Performance Data
Fw
40 mm
Under roller diameter
D
50 mm
Outside diameter
C
17 mm
Width, outer ring
Cr
24,200 N
Basic dynamic load rating, radial
C0r
41,500 N
Basic static load rating, radial
Cur
6,600 N
Fatigue load limit, radial
CG
11,500 1/min
Limiting speed
nϑr
7,000 1/min
Reference speed
≈m
74 g
Weight

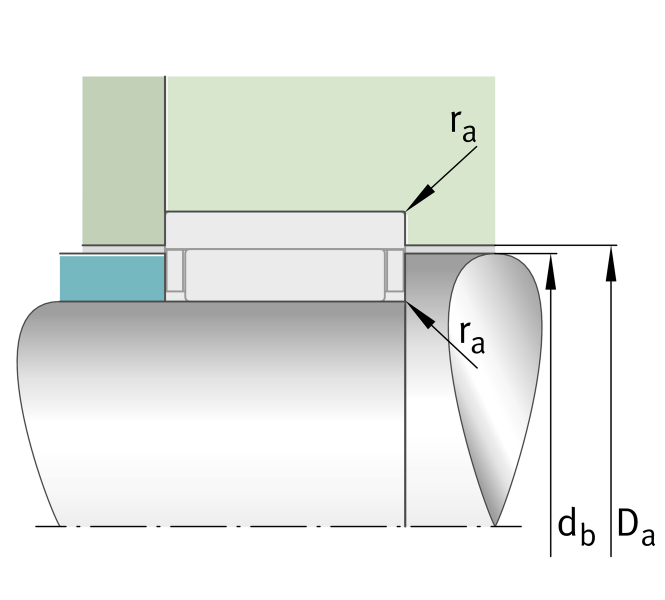

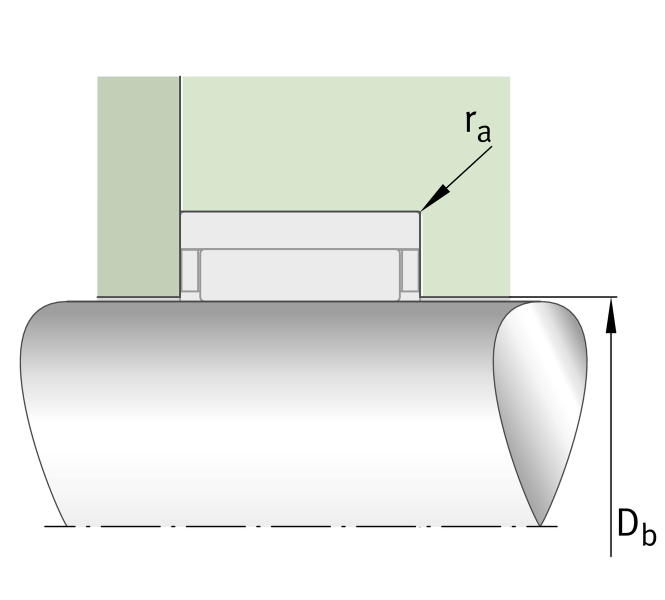

Mounting dimensions
Db
40.6 mm
Shoulder diameter axial guidance NK/housing
db
44.4 mm
Shoulder diameter axial guidance NK/shaft
Da
45.5 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
