INA RNAO6X13X8-TV-XL
Needle Roller Bearings
Needle roller bearings RNAO, without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

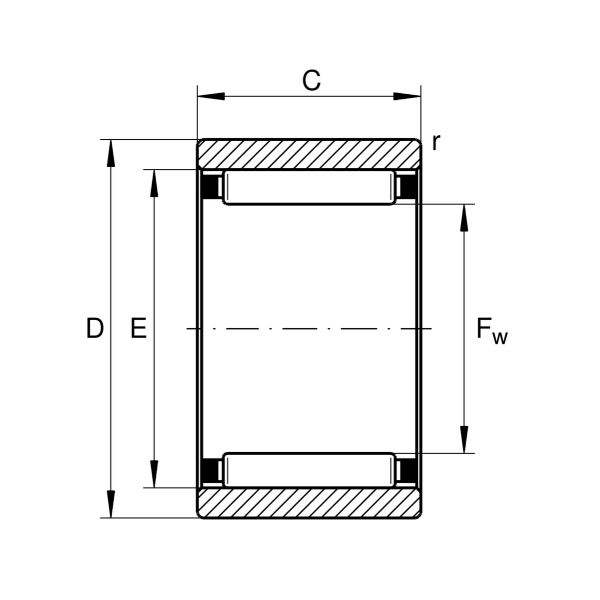

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
13 mm
Outside diameter
C
8 mm
Width, outer ring
Cr
2,950 N
Basic dynamic load rating, radial
C0r
2,280 N
Basic static load rating, radial
Cur
360 N
Fatigue load limit, radial
CG
36,500 1/min
Limiting speed
nϑr
48,500 1/min
Reference speed
≈m
6 g
Weight

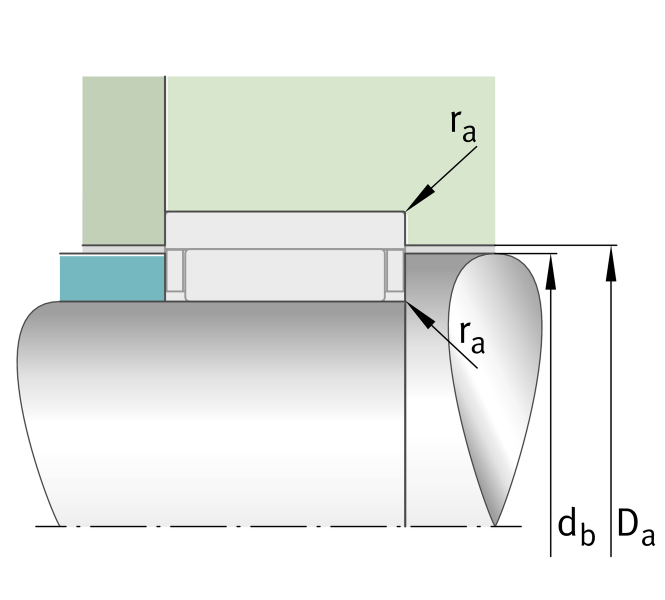

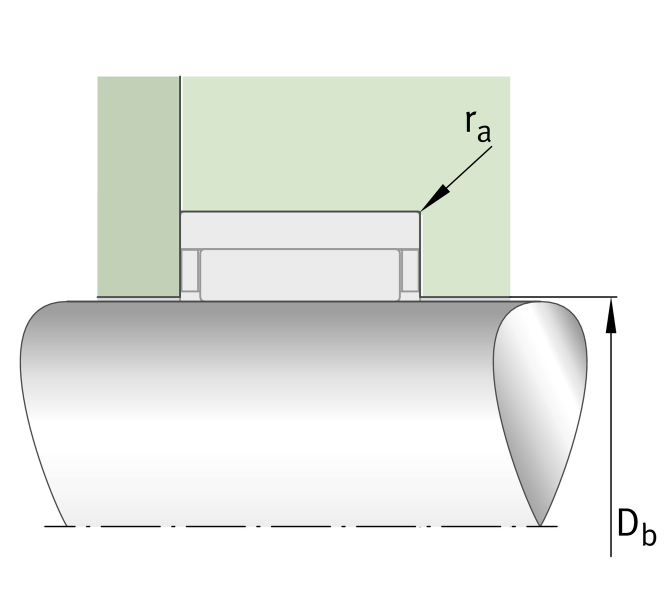

Mounting dimensions
Db
6.3 mm
Shoulder diameter axial guidance NK/housing
db
8.7 mm
Shoulder diameter axial guidance NK/shaft
Da
9.3 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius
