INA RNAO6X13X8-TV
Needle Roller Bearings
Radial roller bearing RNAO..-TV
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

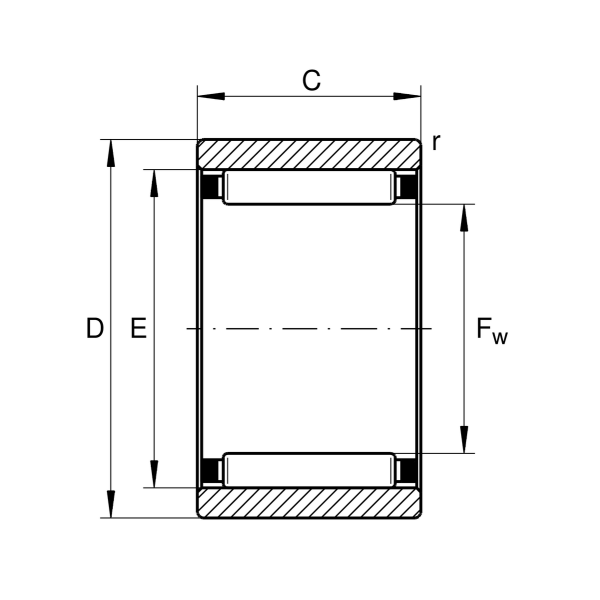

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
13 mm
Outside diameter
B
8 mm
Width
Cr
2,600 N
Basic dynamic load rating, radial
C0r
2,280 N
Basic static load rating, radial
Cur
290 N
Fatigue load limit, radial
CG
36,500 1/min
Limiting speed
nG Grease
21,900 1/min
Limiting speed for grease lubrication
nϑr
48,500 1/min
Reference speed
≈m
4.92 g
Weight

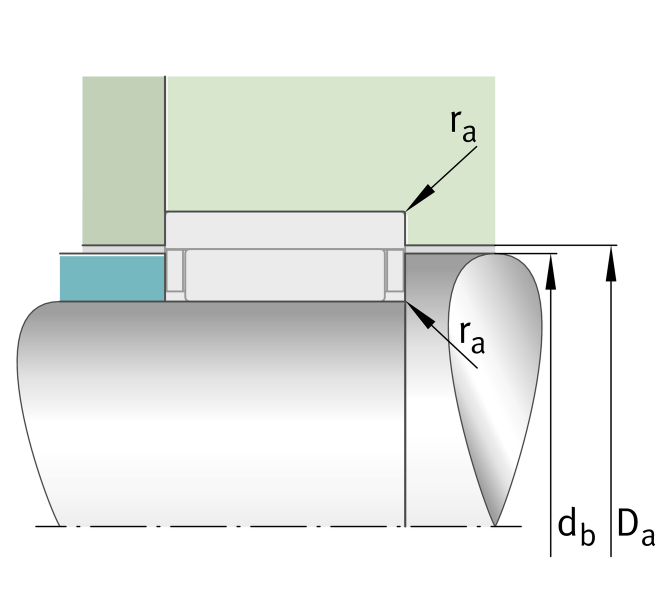

Mounting dimensions
ra max
0.3 mm
Maximum recess radius
db
8.7 mm
Shoulder diameter axial guidance NK/shaft
Da
9.3 mm
Shoulder diameter outer ring

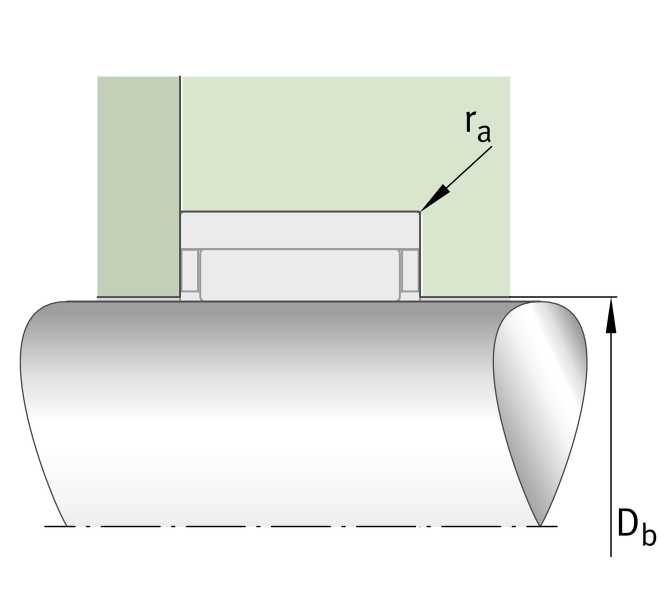

Db
6.3 mm
Shoulder diameter axial guidance NK/housing
