INA RNAO80X100X30-XL

Needle Roller Bearings

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

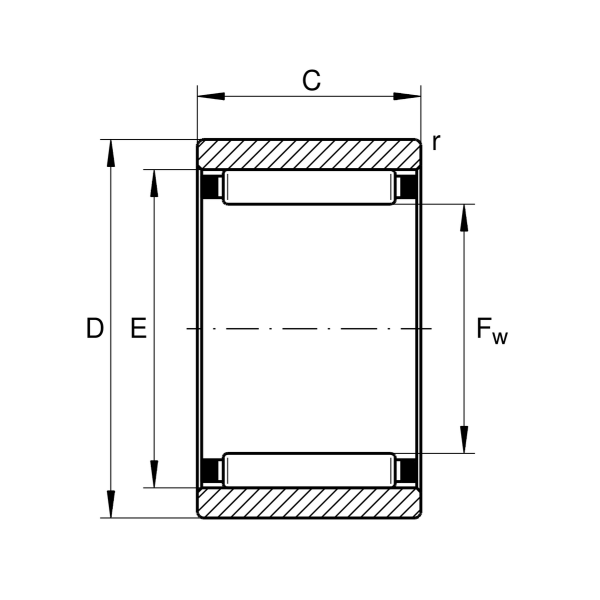

F_w 80 mm Under roller diameter

D 100 mm Outside diameter

C 30 mm Width, outer ring

C_r 80,000 N Basic dynamic load rating, radial

C_0r 176,000 N Basic static load rating, radial

C_ur 31,500 N Fatigue load limit, radial

C_G 5,800 1/min Limiting speed

nϑr 3,600 1/min Reference speed

≈m 0.58 kg Weight

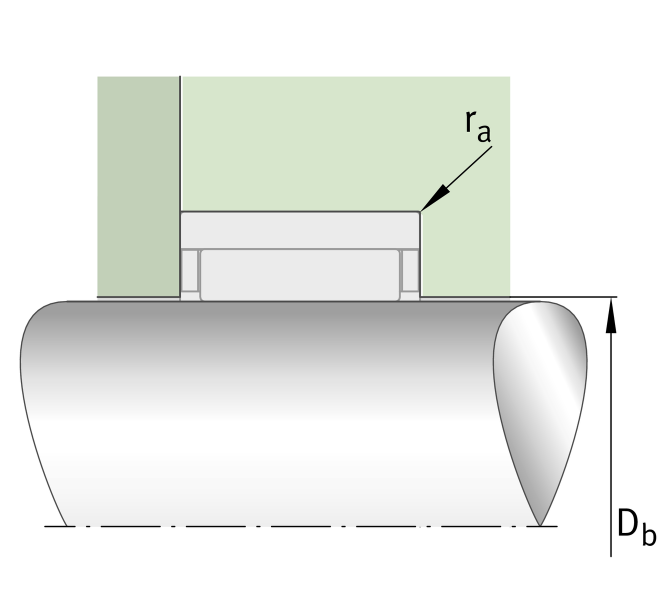

D_b 81 mm Shoulder diameter axial guidance NK/housing

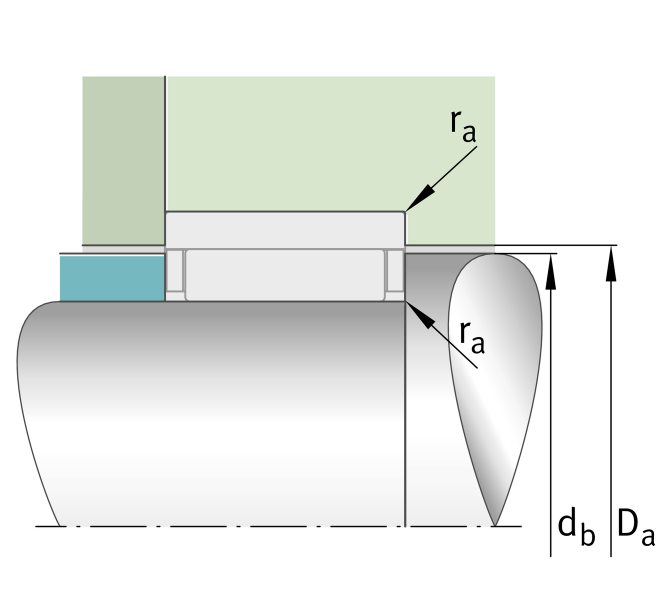

d_b 87.2 mm Shoulder diameter axial guidance NK/shaft

D_a 89 mm Shoulder diameter outer ring

r_{a max} 1 mm Maximum recess radius
