INA RNAO90X105X26-XL
Needle Roller Bearings
Needle roller bearings RNAO, without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

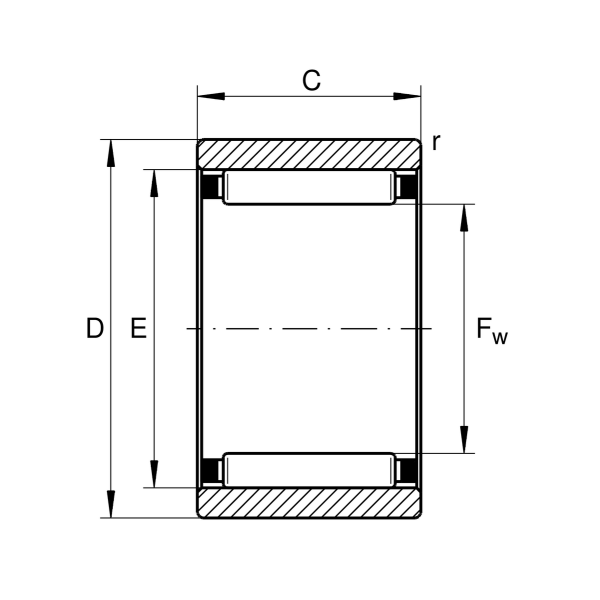

Main Dimensions & Performance Data
Fw
90 mm
Under roller diameter
D
105 mm
Outside diameter
C
26 mm
Width, outer ring
Cr
69,000 N
Basic dynamic load rating, radial
C0r
150,000 N
Basic static load rating, radial
Cur
25,500 N
Fatigue load limit, radial
CG
5,200 1/min
Limiting speed
nϑr
3,350 1/min
Reference speed
≈m
0.373 kg
Weight

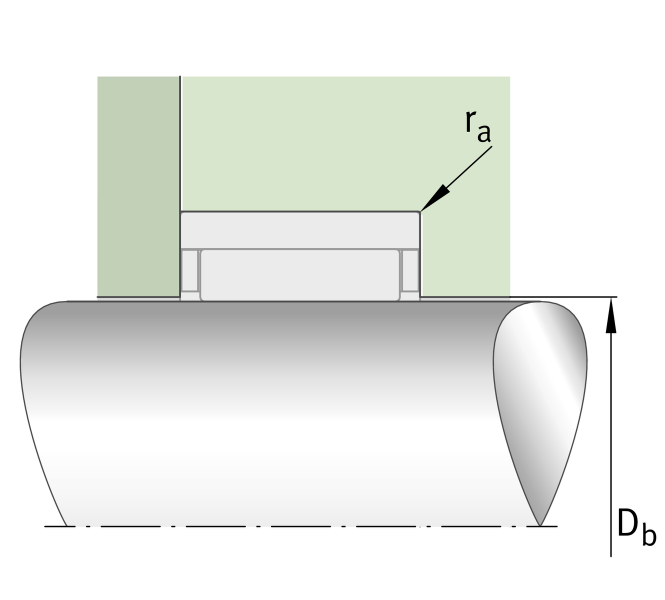

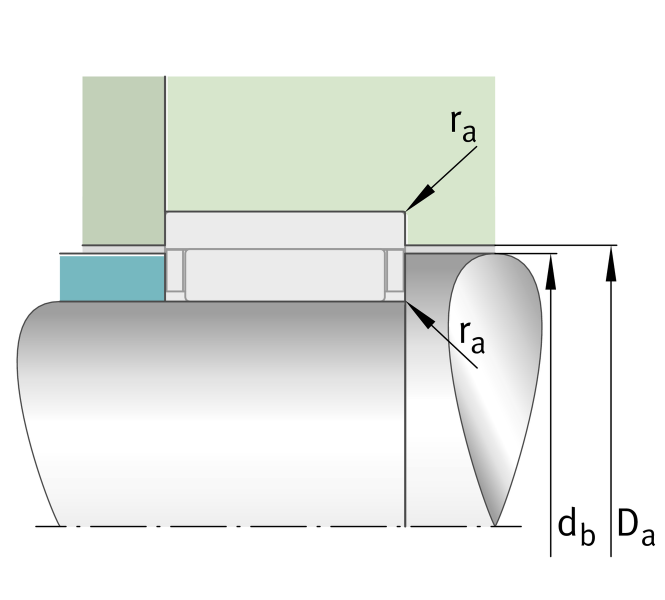

Mounting dimensions
Db
91 mm
Shoulder diameter axial guidance NK/housing
db
97.2 mm
Shoulder diameter axial guidance NK/shaft
Da
99 mm
Shoulder diameter outer ring
ra max
1 mm
Maximum recess radius
