INA SL1829/630-TB-BR-IR/T-CN/3H

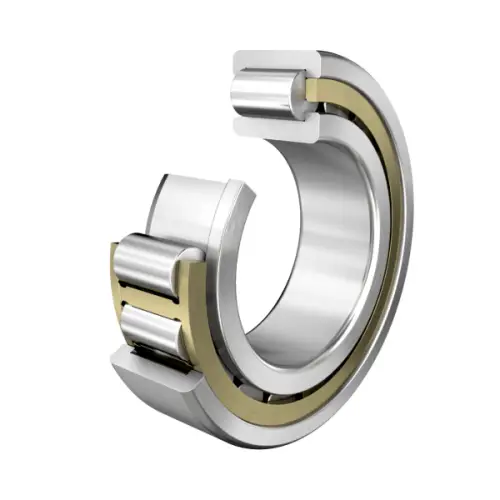

Cylindrical Roller Bearings
Cylindrical roller bearing SL1829..-TB, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
630 mm
Bore diameter
D
850 mm
Outside diameter
B
128 mm
Width
Cr
3,650,000 N
Basic dynamic load rating, radial
C0r
7,300,000 N
Basic static load rating, radial
Cur
620,000 N
Fatigue load limit, radial
CG
405 1/min
Limiting speed
nϑr
205 1/min
Reference speed
≈m
200 kg
Weight
Mounting dimensions
da min
697 mm
Minimum diameter shaft shoulder
d min
697 mm
Minimum shaft shoulder
Da max
773.5 mm
Maximum diameter of housing shoulder
E
799.3 mm
Raceway diameter outer ring
